Making Machines For Octagon Tube Gallery

Octagonal Steel Tube Production Line

Good Quality Galvanized 60MM 70MM Octagonal Tube Roll Forming Machine Customized by LOTOSFORMING. We offer the most economically priced Octagonal Pipe Roll Forming Line and octagon Pipe Roll Forming Machine.







Octagonal Pipe Tube Making Machine

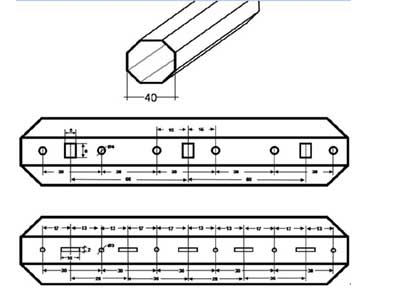

Octagonal Pipe Tube Roll Making Machine ( 40 mm )

The octagonal steel shaft is on the left or right in shutter box bearing bearings and is the changing female for the roller shutter hangings. Steel pipe Shaft Use For Roller Shutter. You Can Find Complete Details about Steel Octagonal Shaft Roll Forming Machine.

Octagonal pipe roll forming Machine

Roller Shutter Octagonal Axle Roll Making Machine ( 60 mm )

LOTOSFORMING company can supply roller shutter octagonal shaft roll forming machine 40MM , 60MM & 70MM. octagonal steel tube Mechanical steel pipes for auto and motor parts Seamless Cold Worked pipe Thick Wall Seamless tube.



Octagonal Tube Cold Roll Forming Machine

Tube Shaft Roll Making Machine ( 70 mm )

An octagon pipe is an equipment that manufactures the octagonal axes of roundel for rolling shutter doors that is assembled by steel slats.

octagonal steel tube roll forming machine

Summary of Octagonal Tube Forming Machine

Material: Galvanized Coil

Material Thickness: 0.8-1.2mm

Main roll forming machine Power: 11 KW

Forming Speed: 4-7m/min

Dimension: 15×0.6×0.8 m (L*W*H)

Weight: 6-8 T

Main Parts Roller Shutter Octagonal Shaft Roll Forming Machine

  1. Manual Decoiler
  2. Roll Forming System
  3. Fly saw cutter
  4. Control system
  5. Output table

Working Flowing Octagonal Pipe Roll Forming Machine

Manual Un coiler     —>>      Feeding    —>>         Roll Forming   —>>        Cutting  —>>   Output table

Octagonal pipe roll forming Machine
Chinese Octagonal pipe roll forming Machine
Technical Information About Octagon Steel Tube Pipe Roll Forming Machine
Un coiler TypeManual
Loading capacity3Ton Impassive to expanding
Axis Diameter60 mm
Forming Roller station20 Groups
Main Axis materialFirst grade 45# steel heated and quenched
Pillar size42*45mm
Forming Speed4-7 m/min
Cutting typeFly saw cutter
Pressure25 T
PLC systemJapan PANASONIC
Rating
Octagonal Tube Cold Roll Forming Machine

Product Name: Octagonal Tube Roll Forming Machine

Availability: InStock
