Imperial Rib Panel machine

AG Panel or Imperial Rib Panel is a stable, weather-resistant roof and wall solution for agricultural and residential projects. The AG panels provide excellent protection against and increase the life cycle of your roof and they need less maintenance on your roof. Metal roofing panels come in a variety of materials and styles. AG Panels are a common selection for many reasons.LOTOSFORMING is one of the leading Tuff Rib Panel Machine manufacturers in China, and specialized in the design, manufacture of the portable roof tile roll forming machine and AG Panel Roofing Roll Forming Machine.

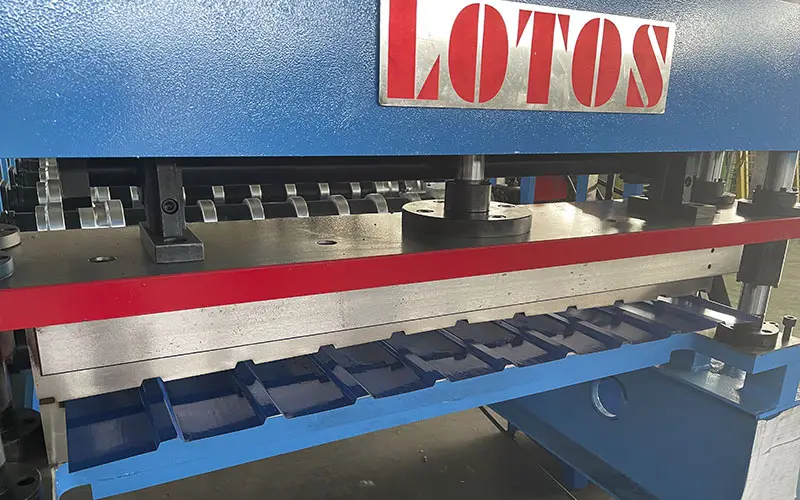

Tuff-Rib Panel Roll Forming Machine

RIB Panel is a most affordable and popular choice for residential metal roofing and multi-use wall and roof panel used in metal building applications. especially in the Southwest. Tuff-Rib Panel is a light gauge through fastener roof tile and wall panel that is a great choice for commercial, industrial, and agricultural.

  • Can be used over open structural framing
  • Exposed fastener design
  • Standard and custom trim available
  • Excellent for roofing and siding
  • Excellent for portable building usage

AG panels are low ribs and offer a sleek look for homes and agricultural buildings. contractors & homeowners choose AG panels for their metal roofing systems because they are affordable price tags and ease of installation.

TR8 Roofing Sheet Machine

TR8 Roofing Sheet is a square fluted profile with an effective covering width of 686mm and designed for use as side cladding or roofing material in commercial, and industrial, and residential buildings.


AG panel machine

Summary of Advantage Panel forming machine:

  1. Material: Galvanized Coil, Color steel coil
  2. Material Thickness:0.4-0.7mm
  3. Main roll forming machine Power: 7.5 KW
  4. Input width:1055mm
  5. Power Supply: 230V, 60HZ, 1P

Main Parts of tuff rib panel machine

  1. Manual Decoiler
  2. Manual pre-shearing
  3. Feeding Guide
  4. Roll Forming System
  5. Hydraulic Stamping&Cutting unit
  6. Control system
  7. Output table

Working Flowing

Manual Decoiler— Feeding—Roll Forming—-Hydraulic Stamp & Cutting —- Output table

Technical Data

Decoiler TypeManual
Loading capacity5Ton

Impassive to expanding

Roll Forming system with feed panel unit
Axis Diameter75mm
Forming Roller station10 Groups
Main Axis materialFirst grade 45# steel

heated and quenched

Roller materialFirst grade 45# steel,

Hard Chrome Coated,

heated and quenched

Forming Speed12m/min
Drive Type1” Chain of transmission
Machine Frame standWelded structural steel,

thickness 10mm

Hydraulic Stamping&Cutting Device
Cutting typeHydraulic stop cutting
Hydraulic pump power2KW
Hydraulic pressure12Mpa
Hydraulic Blade &cutter


Cr12, quenching process 58-62
Cutting length tolerance10m±2mm
Electrical System
PLC systemJapan Panasonic
Length ControllerEncoder Japan KOYO
InverterJapan YASKAWA
Run-out Table
Table quantity3 pcs
Structurerollers on bearings
Click or drag a file to this area to upload.
If you have any drawing upload here:
Rating 23

Product Name: AG Panel Roll Forming Machine

Product Description: AG Wall Panel Roll Forming Machine

Brand: lotos

Offer price: 35

Currency: $

Availability: InStock

User Review
4.43 (23 votes)
