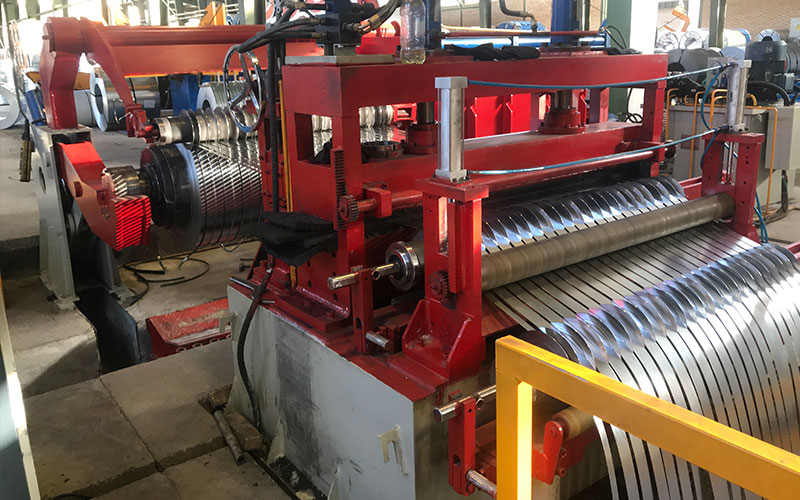

Automatic Slitting line

▷ (0.1-1.5)×1300mm Automatic Slitting line – Coil Slitting ◁.Steel Slitting Line can cut the wide steel coils into different narrow steel strips at different speeds. The lines are composed of high-precision slitters with quick tooling change for slitter, tensioning device, and recoiler. High-capacity recoilers. Extraction from coils without banding. Scrap ballers or scrap choppers. Moving tensioning devices with incorporated leveling.Totally computer-controlled with diagnosis, automatic coil feed, and quality control. You can ask LOTOSFORMING all of the following :

  1. Hydraulic Steel Strips Slitting Machine
  2.  metal slitter Hydraulic
  3. High-Quality Hydraulic Steel Strips Slitting Machine
  4. China Hydraulic Steel Slitting Line Machine
  5.  Cutting Machine Hydraulic
  6. Hydraulic Steel Slitting Machine
  7. Automatic hydraulic steel coil slitting line

High-speed slitting line

. Main technical parameters

Steel coil parametersMaterialCRS and GI
Tensile strengthδb≤500Mpa,

δS≤260Mpa

Steel thickness0.15-1.5mm
Steel width500-1000mm
Steel coil I.Dφ480-508 mm
Steel coil O.DΦ1000mm(Max)
Steel coil weight10T(Max)
Slitter parametersknife pivot diameterФ180 mm
Knife pivot material42CrMo
Blades specificationΦ180mmXφ300mmX3mm
Blade materialSKD-11
Slit parameterMax slit quantity69pcs

20pcs(1-2mm)

30pcs(0.3-1mm)



Width precision≤±0.05mm(T=1.0mm)
Other parametersPower380V/50Hz/3Ph
Line speed0-120m/min
CapacityAbout 180 Kw
Whole line Dimension20mX6m

25m(L)X8m(W)

Operator needed1 mechanical engineer ,2 common workers
Line directionFrom right to left(Face to machine)
Machine colorRed & Gray

Ⅱ.Working Flow

From right to left: Entry coil car → Decoiler →Press and pinch device → Hydraulic cutter → Looper 1→Side guide device→ Slitter → Scrap winder → Looper 2→Tension stand → Recoielr → Exit coil car
