Aluminum U Baffle Ceiling Making Machine

Ceiling U Baffle Roll Forming Machine

LOTOS design and produce Baffle ceilings roll forming machine. Baffle ceilings are ideal for creating an atmosphere within a room space. They are particularly suited for remedial installation on concrete ceilings where a distinctive design or improvement to the acoustic sound is required. A sound baffle is a construction or device that reduces the strength of airborne sound.
The baffle ceiling system shows a unique design element to any space and is a striking addition whether it is installed throughout an entire room or just serves as an accent. Both the style and spacing are customizable and the system can also be installed on either vertical or curved surfaces.

Baffle Ceiling Machine

U Baffle Ceiling aluminium roll forming machine

U Baffle Ceiling aluminum Is Very famous For The Public Space Metal Ceiling Projects Because, they are Easy Installing, Straight Line View And Various Shape Can Be Produced. Widely practical at building, Metro Station, shopping center, And Other Commercial Building Area and so on. The baffle ceiling roll forming machine uses the aluminum strip as raw materials. The basic production process of the Auto change 20-200 mm aluminum Baffle U roll forming machine is decoiler, roll forming, cut to length, etc.

Benefits of Including Baffle Ceilings:

  • Cost-effective.
  • Visually showy and adsorbent space.
  • Create a vibe in the space.
  • Highlight a special area

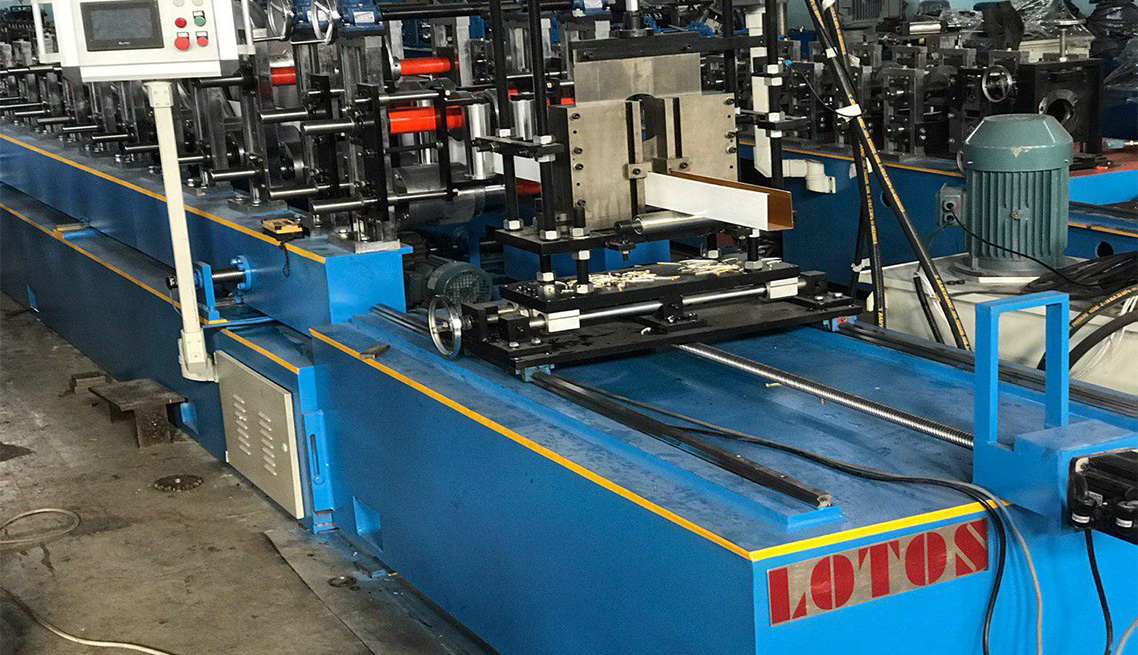

U Baffle Ceiling Making Machine

U Baffle ceiling machine can produce U shape with width: 20-200 mm height: 20-200 mm and speed of this machine is 40-80 m/min. LOTOS Roll Forming Machinery is one of professional roll forming machine factory in China, we can supply different kinds of roll forming machines for different u ceiling channel. If you have your design, show us your design drawing, a good suggestion can give out by our engineer. We offering you an outstanding quality range of U type Baffle Ceiling aluminum roll forming machine.

Grill ceiling Making Machine

The metal ceiling system includes a series of the open-cell units designed to lay onto a suspension grid. open cell ceiling is good for airflow and smoke extraction applications.
roll forming machine Machine for open cell ceiling is made up of decoiler, punching machine, straightener, feeder, transport, roll forming machine and collection.open cell ceiling forming machine is also called Grill ceiling Making Machine, Honey Comb ceiling machine.

linear strip ceiling forming machine

linear strip ceiling Systems are suitable for both interior and exterior applications. also, panels may be acoustic backing added to transform them into acoustic ceiling panels.in fact, Acoustical options with microperforated panels. Find your strip suspended ceiling roll forming machine easily. aluminum ceiling systems define and direct with continuous lines.

Perforated-U-baffle-Ceiling-Roll-Forming-Line
Baffle-Ceiling-aluminium-ROLL-forming-machine
linear-strip-ceiling

Baffle U Channel Machine

Summary:

Material: PPGI,C.S

Material Thickness:0.3-1.2mm

Main roll forming machine Power: 5.5KW

Input width:90-600mm

 Forming speed: 45-50m/min

Main Parts

  1. Manual Decoiler
  2. Feeding Guide
  3. Roll Forming System
  4. Hydraulic Cutting unit
  5. Control system
  6. Output table

Working Flowing:

Manual Decoiler — Feeding—Roll Forming—-Hydraulic Cutting —- Output table



Each part technical parameter:

1. Manual decoiler
1.1Loading capacity3T
1.2Steel coil I.D.φ480-φ520mm
1.3Steel coil O.Dmax φ1200mm
1.4Cantilever width750mm
2. Roll Forming Machine
2.1Roller groups15 stations
2.2Roller material45# steel, chrome coated with heat treatment, HRC58-62°
2.3Roller shaft dia.Φ65mm
2.4Shaft material45# Steel with quenching and tempering
2.5Motor3KW*2sets
2.6Transmission waychain
2.7Machine frame bodyWelded by 350H-beam, Stress-Relieving
2.8Size changeFully automatic move
3. Hydraulic cutting unit
3.1Cutting wayServo tracking cutting
3.2Servo motorXINJIE, 1.5KW
3.3Hydraulic pump motor3kw
3.4Cutting dieCr12MoV with quenching treatment

Combination die

3.5Length measureEncoder,XINJE
3.6Cutting tolerance10m±1.5mm
4. Electricity control cabinet
4.1Frequency inverterXINJE
4.2PLCXINJE
4.3Screen touch screenXINJE
4.4Low voltageSchneider
4.5Power supply380V/50HZ/3P
