sigma posts Roll Forming Machine

LOTOSFORMING produce ▷ C Post Beam Roll Forming Machine | Guardrail Beam | Sigma Posts ◁ for the metal beam guard rail. The roll forming machines are engineered to produce expressway highway Barriers and w beam guard rails. W Beam Roll Forming Machine is also known as a highway guardrail roll forming machine and guard rail bending machine and Guardrail Post Roll Forming Machine. The roll forming machines engineered to produce Two wave guardrails and three-wave guardrails, sigma posts and C posts, steel guardrail cross beam also Guardrail Ends bending.

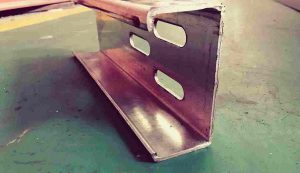

Typically, a c-post beam used in the manufacturing of machinery, enclosures, and vehicles. POST BEAM also use in the construction of buildings for structural support. The Structural Channel, also known as a C-Channel distinguishes from the I-beam or H-beam, or W-beam which has flanges on both sides of the web. Holes are punched along the c-Channel Steel so you can quickly mount your sign with bolts.

The guardrail post beam, as a very important part of highway guardrail, is to be broken into the foundation and support the steel beam, which usually determines the performance of guardrail.

there are several types of posts, such as:

  • round posts
  • square posts
  • C-section posts
  • U-section posts
  • H-section posts.

C shaped Post Making Machine

1) Production working flow

Hydraulic decoiler with traveling cart→hydraulic feeding table→leveling unit—>Hydraulic Punch Station with the pre-cutting unit—>Roll Forming machine→Servo tracking cutting→automatic output table

2) Machine design capacity

  1. Raw material thickness: 4.0-5.0mm
  2. Input material width: about 242mm/248/258mm
  3. Raw material yield limit: S-355
  4. the working speed with punching: 8-10m/min
  5. working speed without punching: 10-15m/min
  6. Working area: about L35,000*W3,000mm*H1,500mm
  7. Overhead crane capacity: ≥10T
  8. Container loading: 3PCS*40GP (ESTIMATED)

3) Machine components

C Post Beam Roll Forming Machine production line will be combined with hydraulic decoiler with travel cart, leveling system, hydraulic feeding device, hydraulic puncher station with the pre-cutting unit, roll forming machine part, hydraulic cutting unit, output table, hydraulic oil pump, and electrical control cabinet and so on.

Steel Beam Roll Forming Machine
Guardrail Post Roll Forming Machine
C posts Roll Forming

Guardrail Beam Roll Forming Machine

1. Decoiler + Hydraulic Feeding table
1.1Loading capacity5T with travel car
1.2Steel coil I.D.φ480-φ508mm
1.3Steel coil O.Dmax φ1800mm
1.4Cantilever width700mm
1.5Feeding tableHelp heavy material feeding into leveling machine
2. Leveling unit
2.1Roller number2 roller clamp material feeding;

5 rollers for leveling

2.2Roller dia.Φ120mm, heating treatment, hardness HRC48º~52º
2.3Frequency motor15kw
2.4Leveling speed1-18m/min
2.5Roller materialGr15
3. Pre-cutting blade+Oval Hydraulic Puncher Unit
3.1Cutting blade materialGr12MoV
3.2Oval hold puncher unitWith die

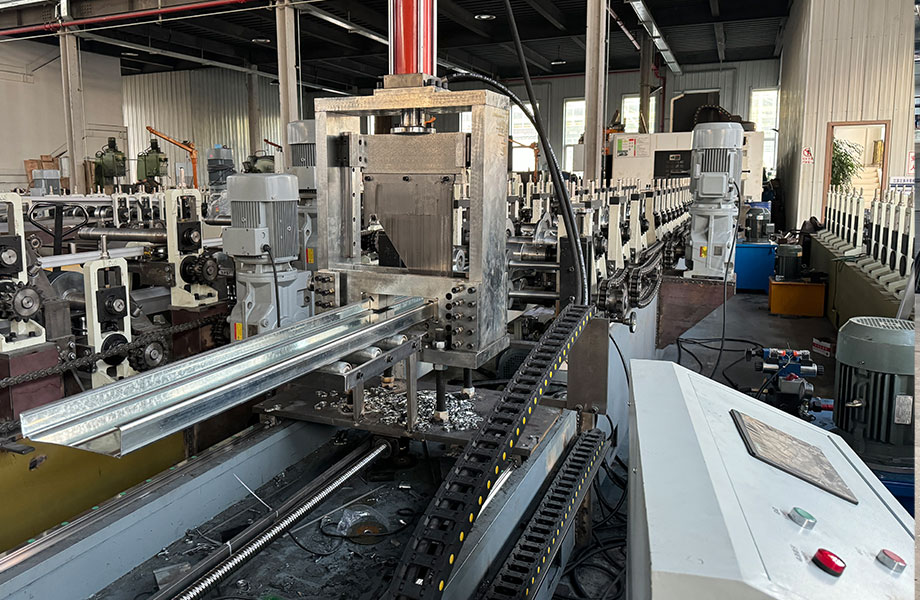

4. C Post Beam Roll Forming Machine
4.1Roller groups15 stations (3 size)
5.2Roller materialGCr15 with heat treatment, HRC58-62°
5.3Roller shaft dia.Φ120mm
5.4Shaft material40Cr with quenching and tempering
5.5Motor30KW*2pcs,Siemens Brand
5.6Transmission wayGY250# independent Gear box
5.7Machine frame body10mm Welded plated, Stress-Relieving
5.8Roller supporternodular iron casting pillar
5.9Roller bearingHRB, 30213
6. Hydraulic Pump Station for mail machine
6.1Motor power22KW
6.2Cooling wayFan wind
7. Servo tracking cutting unit
7.1Servo motorDelta
7.3Cutting die3 units
8. Electricity control cabinet
8.1Frequency inverterMitsubishi A800
8.3Screen touch screenSiemens
8.5Low voltageSchneider
9. Cutting precision
9.1Cutting length±1.0mm
9.2Finished productFlag beam height ±1mm

Web width ±1mm

9.3Vertical Tolerance±1.5mm
9.4Horizontal tolerance±1.5mm
