Fence Post Making Machine

in fact, LOTOS can provide you with a set of professional and perfect Fence Post roll Forming Machine. Installation and commissioning service. The Peach Shape Metal Wire Fencing Post Roll Forming Machine is robust, and will with proper care and maintenance perform at maximum capacity. The Peach Shape Post roll forming machine is a complete production line for the production of metal fencing Peach Post profiles with the punch edge or slotted holes for supporting on a metal fencing system. Fencing post makes from light gauge steel thickness from 1.2-2.5mm. The fencing post and rail are basic elements of a fencing security system, widely used for garden, and school, and factory, and so on.

Definitely, The fencing post rail roll forming machine is starting from the unwinding of metal coils, entry the notching device after feeding, and roll forming to size according to the client’s design, and post-punching and cut to length by hydraulic cutting device then stack and packing.

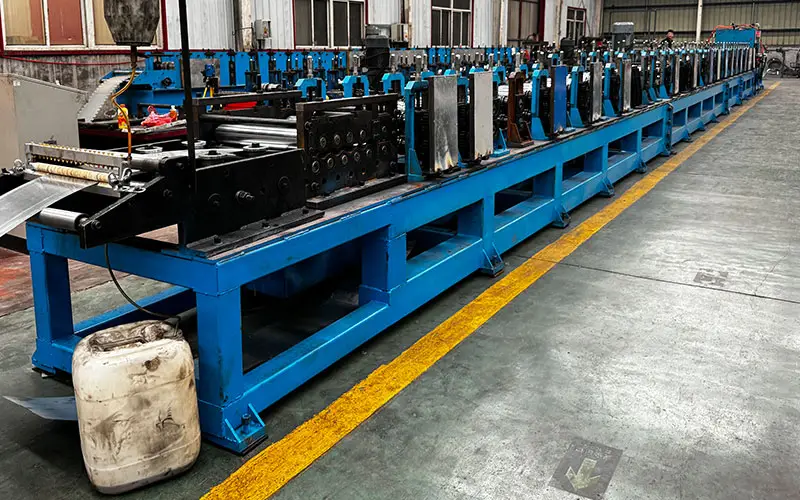

Fence post machine

PEACH POST ROLL FORMING MACHINE

therefore, Peach post, as its name says, the outer shape is like the peach. the claps part has a strong structure, which can prevent the peach post and fence panel from being stolen. The peach post-manufacture from galvanize steel coils or cold roll steel coils and make by a cold roll forming machine into the peach post.
in brief, The out surface of the peach post is ovate, the inner sheet bent outwear after connecting to form U shape hooking part. Several notches are set along the two sides of the peach post for the convenient installation of a metal fence panel. usually, The notch sizes should base on the fence panel mesh size. Pitch Fence Post make of high-quality steel and finish with galvanization or PVC coating, which makes it waterproof and anti-rust.

Peach-Type Post Roll Forming Machine

The main technical parameters:
1. Rolling product specifications (mm): according to customer CAD layout drawing (1.25-1.5mm)
2. Working speed: 18 /min
3. Number of Forming Roller station: 36 groups
4. Roll material: Gcr15 (bearing steel). HRC56-62° (quenching hardness) the secondary processing of the roller after quenching, so as to ensure that the concentricity of the roller is controlled within ±0.03mm
5. Main Axis material: high-quality 45# steel
6.Axis Diameter: φ80mm
7. Main motor power: 15KW
8. Transmission mode: gearbox transmission. Modular helical gear reducer.
9. Cutting method: cold cutting saw

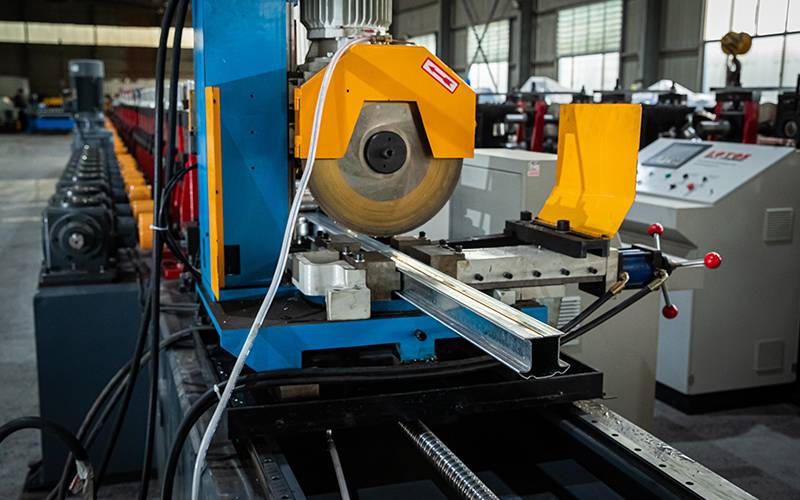

Overview: The cutting machine moves quickly, automatically returns, and the saw head adopts a 40-degree vertical drop without burrs. It consists of a hydraulic pressure bar, cutting oil cylinder, 1.5m reset, hydraulic station motor 4KW, and a saw blade with a diameter of 400-450mm. The tracking and returning action are flexible and reliable. The saw blade cutting device is water-cooled, and the water tank is made to prevent water leakage and adopts water circulation.

Electric control system: The whole machine adopts industrial computer PLC control, and the cut-off length error is ≤2mm (PLC and touch screen adopt Delta brand.

FENCING-POST-ROLL-FORMING-MACHINE
PEACH-POST-ROLL-FORMING-MACHINE

Vineyard Post roll forming machine

in other words, for Installing of peach, post Fix one peach post on the ground. You can be the peach post in the earth, concrete in, or bolt down onto the concrete or other hard ground. It all depends on the specific applications. Install the one side of the fence panel to the peach post, then install the other side of the fence panel to another peach post, and Fix the peach post onto the ground. The fencing post roll forming machine use to produce peach shape fence posts. The main raw materials use to produce peach posts are galvanize steel coils and steel coils with a thickness of 1mm to 4mm.

Vineyard-Post-roll-forming-machine

Palisade fence post roll forming machine

Palisade Fencing post widely accept to protect and deter general attacks from all types and conditions of intrusion. The Palisade Fence post made of cold-rolled steel. These belts offer both strength and rigidity combined with a long life span.
Galvanised Steel Palisade fence provides a secure border barrier for residences. Steel fencing galvanized can coat color to increase corrosion resisting property. the Palisade Fence Making Machine automatically produces. Palisade Fence Post Making Machine mainly use in fencing post-production.

Palisade fence post forming machine
Diamond fence post machine

Metal fencing is strong, durable, and less expensive than hardwood. A fence post or fencing post is a vertical element upholding a fence.
typically constructed from posts that connect by boards, wire, rails, or netting. The diamond fence post machine is a full line for the production of metal fencing profiles. The fence post rail is a basic element of a fencing security system.

Diamond fence post machine

Wire Mesh Fence Post Roll Forming Machine

in fact, LOTOS has made roll forming machines for metal fence posts or Metal Fence Posts.LOTOS can make wire mesh fence posts and, metal fence posts for steel fences.so, Wire Mesh Fence Post widely uses in express highway, and railway, and the airport, the city roads, grand square and flower, and grass fences, etc.

The main technical parameters of Wire Mesh Fence Post Machine:

1. Rolling product specifications (mm): according to customer CAD layout drawing (1.25-1.5mm)
2. Working speed: 18 /min
3. Number of roll groups: 36 groups
4. Spindle material: high-quality 45# steel
5. Spindle diameter: φ80mm
6. Main motor power: 15KW
7. Transmission mode: gear distribution box transmission
8. Cutting method: cold cutting saw to cut the tracking car

WIRE MESH FENCE POST ROLL FORMING MACHINE

Don't forget subscribe to our youtube channel

Roll forming machine manufacturers
Overview fence post manufacturing machine

moreover, The cutting machine moves quickly, automatically returns with a buffer cylinder, and the saw head adopts a 40-degree vertical drop without burrs. It consists of a trolley, hydraulic pressure bar, cutting oil cylinder, 1.5m reset, hydraulic station motor 4KW, and a saw blade with a diameter of 400-450mm. The tracking and returning action are flexible and reliable. The saw blade cutting device is water-cooled, and the water tank is made to prevent water leakage and adopts water circulation.

Structure composition:
Therefore, The forming unit is composed of a feeding device, a transmission device, a forming roller table, and the main machine, an electric welding machine, a flying saw the cutting device, a hydraulic system, an electric control system, a finished product supporting device, etc.

the equipment production process:
Loading, opening, and feeding the board, calibration, and introduction of the feeding, roll forming, spot welding after forming, cutting after forming, finished product support.
