Grain Storage Steel Silo Roll Forming Machine

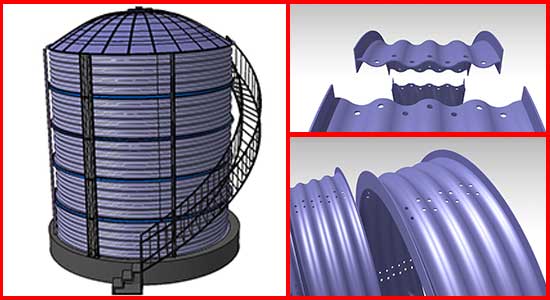

A silo is a structure for storing bulk materials. Silos are commonly used for bulk storage of grain, coal, cement, carbon black, wood chips, food products, and sawdust. The steel silo is make of corrugated arc panels and assembled together with strong screws. the steel silo applies to store concrete, coal, mineral powder, grains, etc. Steel Silo Machines include Silo Corrugated Panel Roll Forming Machine, corrugated plate punch press, corrugated plate bender.

silo-making-machine

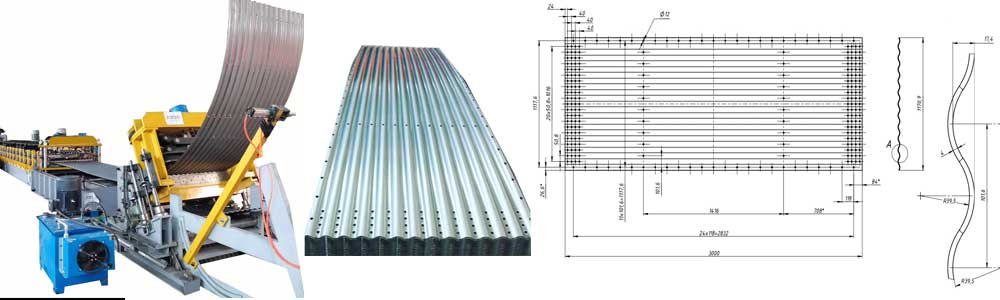

Steel Silo Corrugated Panel machine

Steel Grain silo roll forming machine

Grain Silo Machine components

  1. Hydraulic Decoiler
  2. Feeding Guide
  3. pre-punch
  4. Strip cutting
  5. Roll Forming System
  6. Hydraulic flying Cutting & Punching unit
  7. Hydraulic arc bending machine
  8. Control system
Grain-Silo-Machine

Silo Making Machine

 Summary

  • Material: Galvanized, C.S
  • Thickness:1.0-2.0mm
  • Material yield strength: max 400MPA
  • Input material width: 1125mm(according to your sheet design)
  • Main roll forming machine Power: 15KW*2pcs
  • Forming speed: 10-15m/min

Working Flowing

Hydraulic decoiler, Roll Forming machine, hydraulic flying Cutting & punching die, hydraulic arc bending unit  , Output table

Roll Forming Machine systems
Roller groups20 stations
 materialGCR15, with heat treatment, HRC58-62°
Roller shaft dia.Φ110mm
Shaft material40CR with quenching and tempering
Motor15KW*2sets
Transmission wayZ180# gearbox
Machine frame bodyWelded Plate, Stress-Relieving
Roller standCasting pillar
