Facade profile roll forming machine

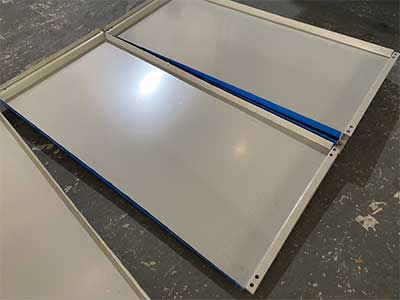

Facade Making Machine in fact, A facade in architecture is an exterior wall of a building, usually one with doors or windows. Often the word refers to a structure’s front wall with an entrance. The front facade tends to be more imposing or decorative. Facade cladding can be defined as being non-load-bearing panels that are fixed to the supporting structure in some way. Fully-supporting metal façade profiles of galvanized or pre-painted and galvanized metal sheets can be used as external and internal wall cladding in all types of buildings.

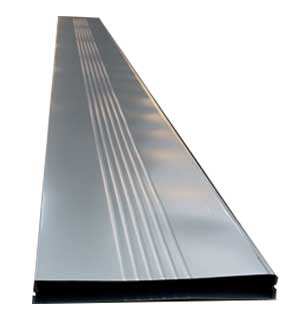

Metal Wall Cladding Roll Forming Machine

• Production working flow

Manual decoiler → Roll Forming machine→hydraulic cutting die→ output table

1. Raw material thickness: 0.5mm
2. Raw material: PPGI
3. Forming Speed: 10-15m/min

• Machine components

This facade profile roll forming machine production line will be combined with a manual decoiler, roll forming machine, hydraulic cutting die, output table, hydraulic oil pump, electrical control cabinet, and so on.

• Each part technical parameter

1. Manual decoiler
Loading capacity	5T
Steel coil I.D.	φ480-φ508mm
Steel coil O.D	max φ1500mm
Cantilever width	600mm

2. Roll Forming Machine
Roller groups	14 stations
Roller material	45# steel with heat treatment, HRC58-62°
Roller shaft dia.	Φ75mm
Shaft material	45# with quenching and tempering
Motor	5.5KW
Transmission way	Chain
Machine frame body	Welded plate structure, Stress-Relieving
Roller supporter	Casting pillar
