POP Channel Roll Forming Machine

LOTOS makes the best-suspended ceilings machines. Suspended metal ceilings are technical profiles that make a system. the profiles must fit together perfectly during assembly to form a solid structure and once fixed they must be aesthetically impeccable. LOTOSFORMING hot sale automatic t bar / t-grid ceiling channel roll forming machine. LOTOS Roll forming machines for ▷ Ceiling Channel Roll Forming Machine | Furring Channel | Top Hat ◁ produce Impeccable profiles and connectors. There are a variety of false ceiling types that can be produced by LOTOS roll forming machine :

  • pop channel machine
  • lip channel roll forming machine
  • Gypsum False Ceilings roll forming machine
  • Metal Ceiling Tiles roll forming machine
  • c channel roll forming machine
  • furring channel roll forming machine
  • top hat roll forming machine
  • Suspended metal ceilings
  • Partition wall structure
  • principal profile
  • Vertical stud
  • Horizontal channel

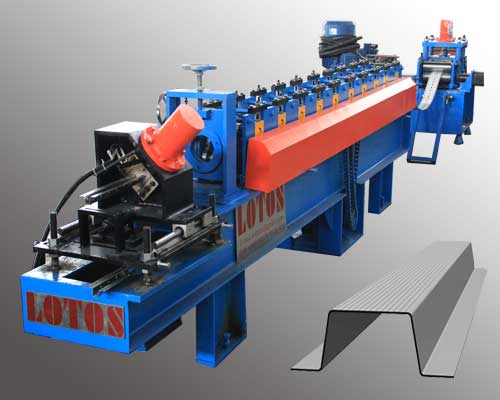

Ceiling Roll Forming Machine

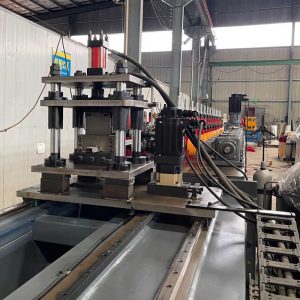

Hat Furring Channels Roll Forming Machine

Knauf Hat Furring Channels, Galvanized lightweight steel sections use as furring channel for drywall ceiling. . Drywall furring channel commonly clips with metal furring channel clips to the underside of the U-Channel. LOTOS Company sells any type Hat Furring Channels roll forming machine and wants to make sure your job is done right the first time; that’s why it’s so important that we talk before you purchase anything. These consultations are part of our service and are offered at no cost to you.

Folded Edge Ceiling Channels machine

Gypsum Ceiling Channel forming machine offered by LOTOS the most affordable rates and high in demand, different patterns.LOTOS can produce a Bulldog ceiling channel that uses for alongside the Bulldog Edge Channel and Bulldog Primary Channel. Folded Edge Ceiling Channels use for securing wall studs at floor and ceiling connection. Folded Edge channels are the most commonly called, FEC channels, gypframe ceiling channels, and MF Ceiling channels.

Hat Furring Channels roll forming machine

Ceiling T Bar Roll Forming Machine

Ceiling tee bars is also called ceiling grids or tee grids. The Gypsum T-Bar Ceiling is a low-cost, easy-to-install, and modified ceiling tile system. A variety of styles and patterns are available.
The Gypsum T-Bar Ceiling is designed so that each structure can be attached to each other without knotting or screwing in.
The minor grid system is simply attached to the main grid and the gypsum board is then attached to the T-bar. This provides easy installation with the ability to attach and detach tiles as required using the T-bar’s instant lock feature.
The T-Bar Ceiling provides a heat block feature and the tiles are also easy to remove in case the ceiling tiles’ system needs repair or replacing.
LOTOSFORMING hot sale automatic t bar / t-grid ceiling roll forming machine.LOTOS Roll forming machines for T-bars produce Impeccable profiles and connectors.

Tee-Bar-Ceiling MACHINE

J channel machine

These j channel pieces use as trim and locking in the soffit panel. J-channel hides the cut lines of panels giving your project a clean finished look.
Siding trim is used to cover exposed panels and weatherproof corners and around doors and walkways, among other applications. J Channel roll forming Machines are equipped with a rigid steel frame and chrome-plated forming rolls for accurate and professional J channels.

j channel machine

Drywall Roll Forming Machine

Drywall is a panel made of gypsum, with or without additives, typically extruded between thick sheets of facer and backer paper, used in the construction of interior walls and ceilings. light gauge steel is a modern building material that comes in large panels having a gypsum core sandwiched between two heavy paper faces.
Steel Stud & Track construction became prevalent as a saving alternative to traditional lath and plaster. U channel Metal Profile offers a sturdy framework for the gypsum board to be fixed. This is a quicker method of installation. you can choose to use drywall metal profiles in vertical wall partitions and wall linings or in horizontal ceiling applications.

Roll forming machines for plasterboard profiles

Drywall Steel Sections or plasterboard profiles Limited has one of the most comprehensive ranges of cold-rolled products and systems for partitions, ceilings, wall linings, and light gauge structural steel framing. LOTOS supplies complete roll forming machines for drywall and ceiling constructions such as :

  1. Ceiling Drywall Profile roll forming machines
  2. Wall Angle Drywall Profiles roll forming machines
  3. Ceiling Perimeter Drywall Profile roll forming machines
  4. Top hat roll forming machine
  5. plasterboard ceiling profile machine
  6. Lip channel roll forming machine
  7. U channel roll forming machine
  8. Suspended metal ceilings forming machine
  9. Horizontal channel making machine
ceiling-channel MACHINE

V keel suspended profile roll forming machine

The V Shape Ceiling Light Steel Keel Suspended is a kind of ceiling steel framing made by galvanized light steel. The quality and dimension of the product are past the international standard. It has a good look and is easy to install, also has a good market in the decoration industry. The ceiling suspends a system made of galvanized and painting boards of better anticorrosive and fire-proofing. V channel is made by good quality materials and professional work teams.

V-KEEL-SUSPENDED-PROFILE
Angle Roll Forming Machine

The final product of an angle roll forming machine is a new building material, Wall angle light keels are one of the keels used in ceiling participation. The slotted angle roll forming machine creates to make those L profile wall angles in batch for huge production. It can make the corner looks smoother and speed up the construction period.

angle roll forming machine

Metal suspended ceiling panel machine

If you are looking for a metal suspended ceiling panel machine, you have come to the right place. Metal Ceiling Tiles are clipped into a concealed tee bar grid system and are pushed from below the ceiling.
A wide range of metal ceiling tile hydraulic press machine options are available.

The produce of metal ceiling tile panels includes several steps. The production starts from the coil material, where the hydraulic decoiler in uncoiling the coil. In the hydraulic press machine, the edges of the metal drop tiles are bent and the ready products are stacked.

metal ceiling panel Hydrualic press machine

Machine specification :

  • Drywall roll forming machine

1) 3T manual decoiier
2) 9 stations of rollers, shaft φ65mm;
3) Roller material: GCR15, shaft material: 45# steel
4) Main motor: 5,5KW, K-series motor
5) Machine drive way: chain,Japan CHOHO
6) Roller supporter: wall panel
7) Bearing: Japan SKF
8) Cutting way: hydraulic servo tracking way,servo motor/2KW
9) Hydrualic pump motor: 3kw, larger cylinder
10) Line speed ≥35m/min
11) Program system: DELTA
12) Special request: LOGO press

drywall-roll-forming-machine
channel-roll-forming-machine
  • Furring channel roll forming machine

1) 3T manual decoiier
2) 14 stations of rollers, shaft φ65mm;
3) Roller material: GCR15, shaft material: 45# steel
4) Main motor: 5,5KW, K-series motor
5) Machine drive way: chain,Japan CHOHO
6) Roller supporter: wall panel
7) Bearing: Japan SKF
8) Cutting way: hydraulic servo tracking way,servo motor/2KW
9) Hydrualic pump motor: 3kw, larger cylinder
10) Line speed ≥35m/min
11) Program system: DELTA
12) Special request: LOGO press & embossing roller

ceiling-channel-rill-forming-machine
furring-roll-forming-machine
  • T-BAR ROLL FORMING MACHINE

1)Summary Partition

  1. Material: Galvanized Coil, colored steel
  2. Material Thickness: 0.5-0.2mm
  3. Main roll forming machine Power: 7.5 KW
  4. Forming Speed: 20-15m/min
  5. Dimension: 8×0.7×0.8 m (L*W*H)

2) Main Parts drywall metal stud and ceiling profiles machine

  1. Manual 3T un coil (2 pcs)
  2. Feeding Guide
  3. Roll Forming System
  4. Punch system
  5. Hydraulic Cutting
  6. Control system
  7. Output table

3) Working Flowing

Manual Un coiler  —>        Feeding       —>       Roll Forming   —>         punching —> &Cutting       —>       Output table

T-GRID-PROFILE

4) Working Flowing

5.1 Un coiler
Un coiler TypeManual
Loading capacity3Ton

Impassive to expanding

 Roll Forming system with feed panel unit
Axis Diameter50 mm
Forming Roller station16 Groups
Main Axis materialFirst grade 45# steel

heated and quenched

Roller materialFirst grade 45# steel,

Hard Chrome Coated,

heated and quenched

Forming Speed20-15 m/min
Drive Type1.25” Chain of transmission
Chain sizeJapan CHOHO 100#
Machine Frame standWelded structural steel
Hydraulic Cutting Device
Cutting typeServo tracking cutting
Cutting system power2.2KW
Cutting length tolerance±0.5mm
Hydraulic punching and clips Device
punching typeSaw Servo punching
Cutting length tolerance±0.5mm
MechanismHydraulic
MoldsHard Chrome Coated,

heated and quenched

Clips punch  mechanismHydraulic or mechanical
Clips moldsHard Chrome Coated,

heated and quenched

Electrical System
PLC systemPANASONIC or DELTA
Length ControllerEncoder KOYO
OperationTouch Screen
InverterYASKAWA
Voltage380V/50Hz/3P
CEILING-CHANNEL-MACHINE
u-baffle-profile-forming-machine
