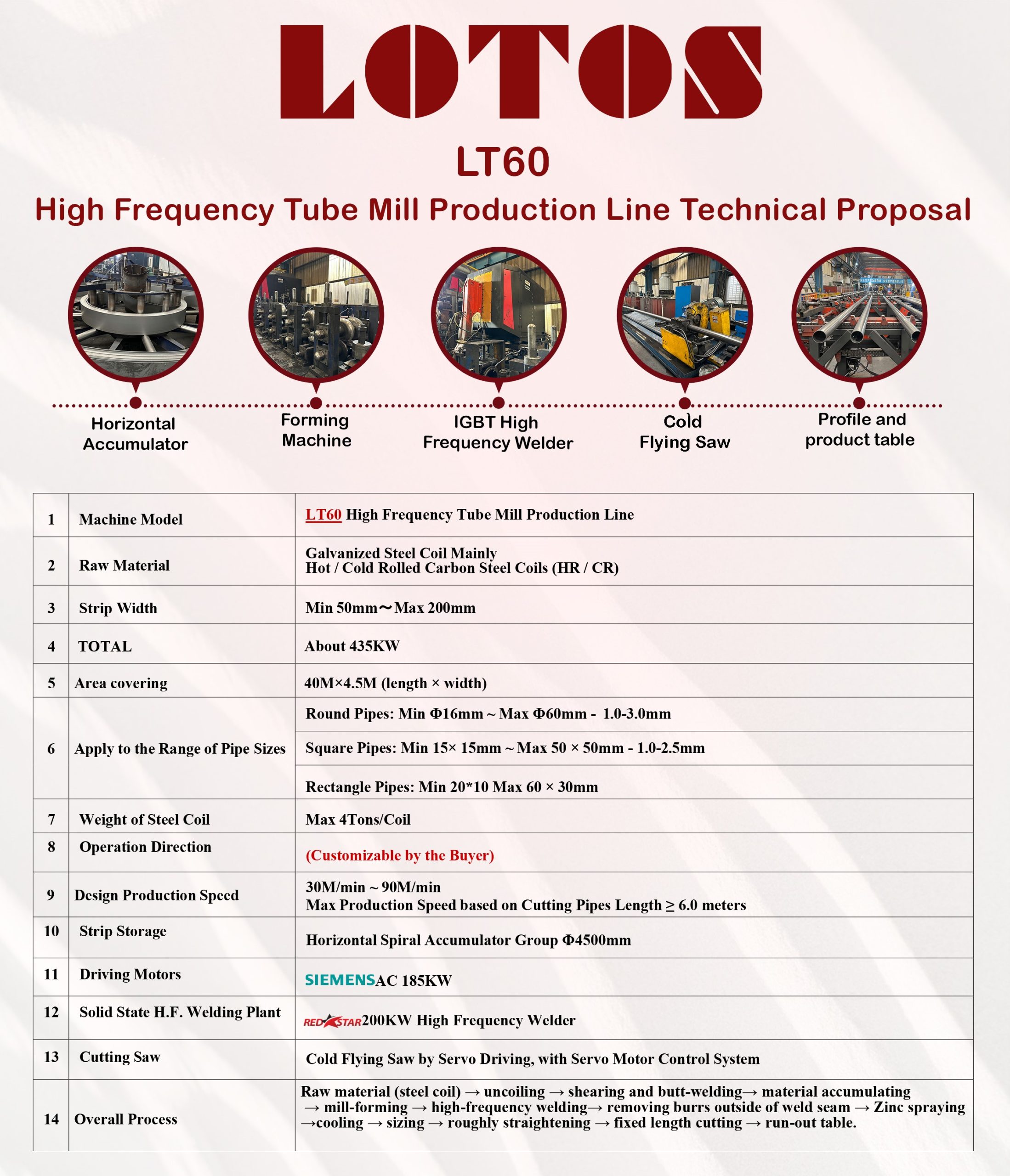

Electric resistance welding tube mill is used: For low-pressure fluid transmission, machinery manufacturing, electric power engineering, etc. LF19-76 High-Frequency Tube Mill Production Line / high-frequency straight seam pipe making machine / ERW Tube Mill Line is designed to produce welded pipes of Φ19mm~Φ76mm O.D. Of round pipe and Round pipe δ0.6mm~2.5mm, Square pipe δ≤2mm in wall thickness.
ERW Tube Mill Line
High-Frequency ERW Tube Mill Production Line
Welded Pipe Making Machine

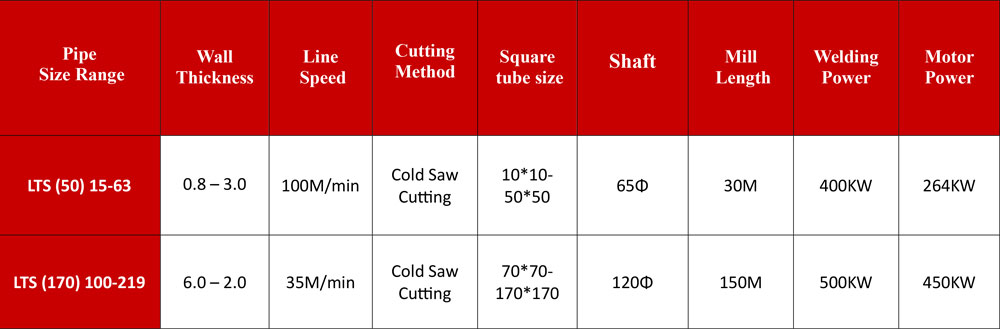

Ⅰ. PRODUCE CAPACITY
No. | Item | Data | Remark |
1 | O.D. Of round pipe | Φ19mm~Φ76mm | |
2 | Wall thickness | Round pipe δ0.6mm~2.5mm Square pipe δ≤2mm | |
3 | MILL SPEED | 30M/min~100M/min | |
4 | LENGTH | 4M~8M |
Ⅱ STEEL STRIPS SPECIFICATION
No. | Item | Data | Remark |
1 | W.T. of strips | Δ0.6~2.5mm | MATERIAL C.S Q195, 235, Galvanized Steel Strip |
2 | Width of strips | H40~240mm | |
3 | O.D. of steel coil | Φ800mm~Φ1500mm | |
4 | I..D. of steel coil | Φ450mm~Φ550mm | |
5 | Maxi. Load weight | ≤3500kg |
Ⅲ working flow
Raw material (steel coil) → uncoiling → shearing and butt-welding → material accumulating → non-power leveling →mill-forming → high-frequency welding → removing burrs outside of weld seam → Zinc spraying → cooling → sizing → roughly straightening → fixed-length cutting → run-out table
ERW Steel Pipe Making Machine
Ⅳ. machine parts details ERW Tube Mill Line
4.1uncoiler two type: hydraulic expanding
Structure type: Double-side 180ºrotary hydraulic expanding tightly, which insure steel coil feeding alternatively and make steel strip going into accumulator freely.
Structure type | Hydraulic expanding double side |
I..D. of steel coil | Φ450mm~Φ550mm |
O.D. of steel coil | Φ800mm~Φ1500mm |
Width of strips | H60mm~H320mm |
Maxi. Load weight | ≤3500kg |
4.2 Shear and butt-welder
Shearing and butt-welder, which insure double steel tidily and then welding and leveling weld seam and supply strips for the accumulator.
4.3 Horizontal accumulator
It has two AC motor: one is a feeding motor and the other is a driven motor, and ensure steel strips inputting and outputting for forming.
Diameter of accumulator: Φ4500㎜
Feeding motor: YCT250-4A 18.5KW
Driven motor: YCT250-4B 22KW
Steel ERW Welding Pipe Mill

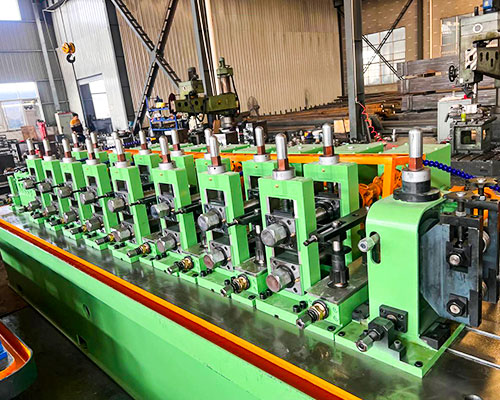

4.4 FORMING MACHINE
Mainly roughly mill-forming steel strip and controlling weld seam.
Description | Item | Technical parameters |
Horizontal-roll stands | Quantity | Seven stands |
Material of horizontal stands | High-precision forged steel | |
Diameter of horizontal shaft | Φ60mm | |
Material of horizontal shaft | 42CrMO | |
Vertical-roll stand | Quantity | seven stands |
Material of vertical stands | QT50 | |
Diameter of horizontal shaft | Φ45mm | |
Material of horizontal shaft | 45# forged steel | |
Driven gearbox | Quantity | Seven gearboxes |
Material of gearbox | QT50 | |
Type | Spiral bevel gear | |
Material of gearbox | 20CrMnTi | |
Material of shaft | 40Cr | |
Power transmission method | From universal transmission joint to horizontal roll stands |
4.5 Guide and squeeze and scraper
One set of guide roll stand for controlling direction of pipe seam to insure pipe seam flatly and straightly entering into extruding rollers.1 set of extruding roll stand for controlling weld seam to realize successful welding.Two sets of scraper frame for scraping outside weld seam
Description | Technical parameters | Remark |
Guide type | Turkish-heads type and 360°rotary | |
Welding rolls | two welding rollers or Three welding rollers | |
Scraper stands | Adjusting pole and quickly feeding and exit |
4.6 Zinc spraying or Arcspray Process :
Repairing the welding seam Zinc surface
The tube is produced by the Electrical Resistance Welding (ERW) of the longitudinal seam. By using a pre-coated steel strip
[zinc coating (galvanized), aluminum coating (aluminized), or Zn/Al Alloy Coating], a tube with enhanced corrosion resistance can be produced. During the welding process, the external coating around the weld area is damaged by the heat generated around the weld area and the subsequent tooling operation, and should be re-protected this area of the tube will corrode.
The re-protection of this weld damage gets by using a metal sprayed deposit with a material that affords similar corrosion resistant properties to the strip pre-coat. This method is in line with the repair is the only way available which offers the flexibility of producing tubes with zinc, aluminum or Zn/Al coatings.
4.7 Cooling type: Sink and shower
4.8 Sizing of ERW tube mill line
Description | Item | Technical parameters |
Horizontal-roll stands | Quantity | Six stands |
Material of horizontal stands | High-precision cast or forged steel | |
Diameter of horizontal shaft | Φ60mm | |
Material of horizontal shaft | 42CrMO | |
Vertical-roll stand | Quantity | six stands |
Material of vertical stands | QT50 | |
Diameter of horizontal shaft | Φ45mm | |
Material of horizontal shaft | 45# forged steel | |
Driven gearbox | Quantity | Six gearboxes |
Material of gearbox | QT50 | |
type | Spiral bevel gear | |
Material of gearbox | 20CrMnTi | |
shaft Material | 40Cr | |
Power transmission method | From universal transmission joint to horizontal roll stands |
Sizing device: Mainly fine shaping pipe after welding and controlling size accuracy. Every 6 sets of a horizontal roll stand, vertical roll stand and drive gearbox, 12 sets of the universal shaft. (structure same as forming device)
ERW pipe mill line

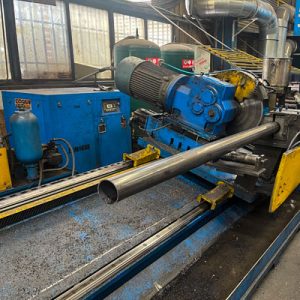

4.9 Roughly straightening machine frame
This unit is used for straightening the pipe after sizing, to reach the required straightness.
Technical parameters | |
Straightening stands type | Turk’s head type, and 360°rotary |
Diameter of straightening shaft | Φ35mm |
Material of straightening shaft | 40Cr |
4.10 Main driven motor
Technical parameters | |
Main driven motor power | 160KW |
Reducer model | ZLY250 |

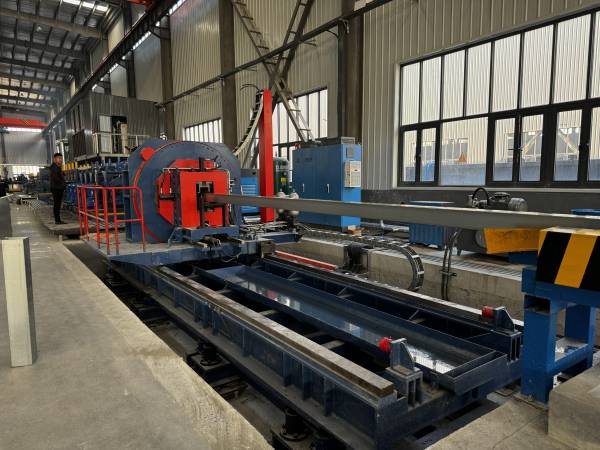

4.11 Computer-controlled cutting machine
Usage: Cutting online as per the setting length
No. | Type | CNC controller, normal/hot cutting |
1 | Diameter | Φ80mm |
2 | Wall-thickness | Δ2.5mm |
3 | Cutting tolerance | L=4~8m, ≤±3mm |
4 | driven type | Pneumatic feeding and exit |
5 | The specification of saw blade | Φ550㎜ |
6 | Cutting motor | 15 KW |
7 | speed Cutting | 100M/min |
4.12 Run-out table
Welded frame structure equipped with sizing signal system
4.13 200KW High-Frequency Welder
The power of H.F. welder is 200KW
Ⅵ. Facilities prepared from Customer Side
Power supply | 380V/220V; 50HZ; 3phrase | |
Power needed list | H.F. welder | 200 KW |
Main motor | 160 KW | |
others | 50 KW | |
TOTAL | APPROX.410KW | |
Area covering | 40M×4.5M (length×width) | |
The area covering of H.F welder | 6M×3M ×2.8M (length×width×height) | |
Water supply | 1.One set of cooling saponification water pool 30M³& 2. One set of high-pressure pumpsΦ2″, 32M pressure; 3. One set of cooling clean water pool 30M³& 4. One set of high-pressure pumpsΦ2″, 32M pressure; | |
Air/Gas supply | Air compressor 22KW 2~3 M³ | |
Lifting equipment | Overhead crane 5-10 tons, two sets | |
Consumable parts | Wires and cables | saw blade |
Ferrite core | Zinc wire |
Decoiler
Accumulator
Roll forming
Guide and squeeze and scraper
Zinc spraying
Cooling
Sizing
Cutting Machine
