Automatic Slitting line

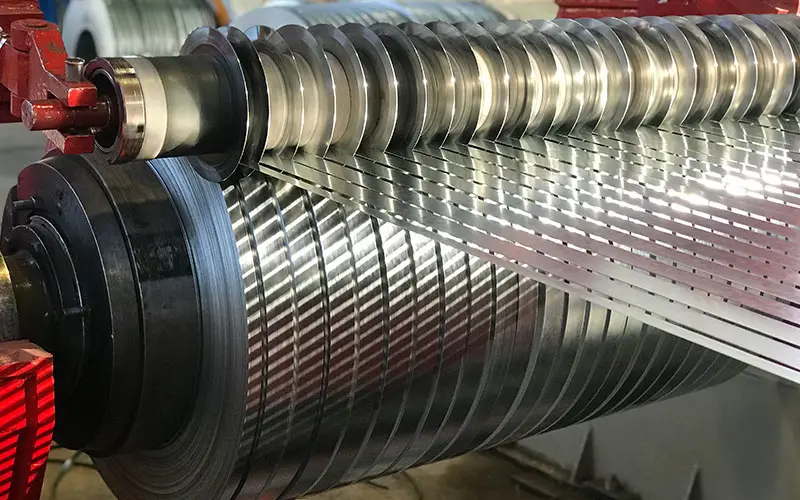

▷ Light Gauge Slitting Line – Coil Slitting ◁.Steel Slitting Line can cut the wide steel coils into different narrow steel strips at different speeds. The lines are composed of high-precision slitters with quick tooling change for the slitter, tensioning device, and recoiler. High-capacity recoilers. Extraction from coils without banding. Scrap ballers or scrap choppers. Moving tensioning devices with incorporated leveling. Totally computer-controlled with diagnosis, automatic coil feed, and quality control. You can ask LOTOSFORMING all of the following :

  1. Hydraulic Steel Strips Slitting Machine
  2.  metal slitter Hydraulic
  3. High-Quality Hydraulic Steel Strips Slitting Machine
  4. China Hydraulic Steel Slitting Line Machine
  5.  Cutting Machine Hydraulic
  6. Hydraulic Steel Slitting Machine
  7. Automatic hydraulic steel coil slitting line

[embedyt] https://www.youtube.com/watch?v=Qr1tnNqWrpc[/embedyt]

Slitting Lines for Light Gauge

. Main technical parameters

Steel coil parameters Material CRS and GI
Tensile strength δb≤500Mpa,

δS≤260Mpa

Steel thickness 0.15-1.5mm
Steel width 500-1000mm
Steel coil I.D φ480-508 mm
Steel coil O.D Φ1000mm(Max)
Steel coil weight 10T(Max)
Slitter parameters knife pivot diameter Ф180 mm
Knife pivot material 42CrMo
Blades specification Φ180mmXφ300mmX3mm
Blade material SKD-11
Slit parameter Max slit quantity 69pcs

20pcs(1-2mm)

30pcs(0.3-1mm)



Width precision ≤±0.05mm(T=1.0mm)
Other parameters Power 380V/50Hz/3Ph
Line speed 0-120m/min
Capacity About 180 Kw
Whole line Dimension 20mX6m

25m(L)X8m(W)

Operator needed 1 mechanical engineer ,2 common workers
Line direction From right to left(Face to machine)
Machine color Red & Gray

Ⅱ.Working Flow

From right to left: Entry coil car → Decoiler →Press and pinch device → Hydraulic cutter → Looper 1→Side guide device→ Slitter → Scrap winder → Looper 2→Tension stand → Recoielr → Exit coil car
