PBR metal machine
PBR panel machine

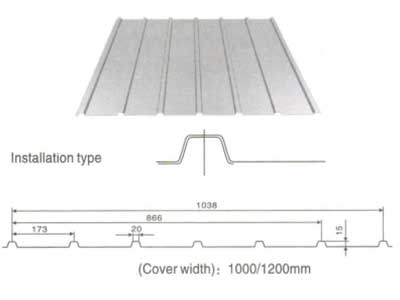

R Panel metal roofs are the long lasting and Beautiful stunning metal roofing option. They are easy to install and this course cuts down on labor, time, and disposal costs. These R panel roofs are available in many different colors. R-Panel/PBR-Panels are very popular for both local and commercial roofing systems.
R-Panel Metal Roof is built with 36 inch wide interconnected metal panels. These metal roof types feature overlapping seams which limit water infiltration, but the exposed fasteners can be a point of weakness.LOTOSFORMING is one of the leading R panel metal machine manufacturers in the R-Panel metal roof, and specialized in the design, manufacture the roll forming machines, and PRB panel roll forming machine.
Rib type roll forming machine
PBR” Panel stands or Purlin Bearing Rib Panel is far better to the “R” panel for most roof and siding wall applications. These PBR-Panels include a larger overlap section (purlin bearing leg) between panels that give the metal roofing sheets more strength. R-Panels & PBR Panels design for commercial, industrial, and steel frame building applications.
The primary difference between the R-Panel and PBR-Panel is the Purlin-Bearing Leg on the PBR-Panel. This leg provides better support for roof applications.
standing seam metal roof machine
a standing seam model is located at the highest point of the roof. The standard metal roof type for very large projects, standing seam roofs are very well regarded in the commercial roofing industry. Standing seam roofing panels are defined as a concealed fastener metal panel system that features vertical legs and a broad, flat area between the two legs.
Standing Seam Types:
SNAP-LOCK
MECHANICAL LOCK
BATTEN PANEL
NAIL FLANGE/FASTENER FLANGE
Metal Roofing Machine
- Summary R Panel Roofing Machine
- Material: Galvanized Coil and Color steel coil
- Material Thickness: 0.3-0.8 mm
- Main roll forming machine Power: 7.5 KW
- Forming Speed: 12-13 m/min
- Feeding width: 1000 mm/1250 mm
- Main Parts high rib roofing panel roll forming machine
- Manual Decoiler
- Feeding Guide
- Manual slitting device
- Roll Forming System
- Hydraulic Cutting unit
- Control system
- Output table
- Working Flowing Metal Tile Making Machine
Manual Decoiler— Feeding— Roll Forming —- Cutting —- Output table
| Machine to Make Metal Roofing |
| Decoiler |
| Decoiler Type | Manual |
| Loading capacity | 5Ton Impassive to expanding |
| Roll Forming system with the feed panel unit |
| Axis Diameter | 75mm |
| Forming Roller station | 18 Groups |
| Main Axis material | First grade 45# steel heated and quenched |
| Roller material | First grade 45# steel, Hard Chrome Coated, heated and quenched |
| Forming Speed | 10-15 m/min |
| Drive Type | 1” Chain of transmission |
| Chain size | Japan CHOHO 100# |
| Machine Frame stand | Welded structural steel, thickness 10 mm |
| Hydraulic Stamping&Cutting Device |
| Cutting type | Hydraulic stop cutting |
| Hydraulic pump power | 4 KW |
| Hydraulic pressure | 12Mpa |
Hydraulic Blade &cutter material | Cr12, quenching process 58-62 |
| Cutting length tolerance | 10m±2mm |
| Electrical System |
| PLC system | Japan Panasonic |
| Length Controller | Encoder Japan KOYO |
| Operation | MGCS Touch Screen |
| Inverter | Japan YASKAWA |
| Voltage | 380V/50Hz/3P |
FAQ :
1-What does “PBR” stand for?
“PBR” stands for Purlin Bearing Rib, which refers to the design of the panel’s rib that extends over purlins, providing added support, easy installation, and superior structural integrity.
2- What materials can the PBR metal machine process?
The machine can process galvanized steel, galvalume, pre-painted coils, and aluminum sheets, with thickness typically ranging from 0.4 mm to 1.2 mm.
3-What is the production speed of a PBR panel roll forming machine?
The speed usually ranges from 10–25 meters per minute, depending on the material thickness, profile design, and automation level.
4-Can the machine produce different panel sizes?
Yes. The PBR metal machine can be customized to produce various widths, rib heights, and panel lengths according to customer specifications.
