Product description

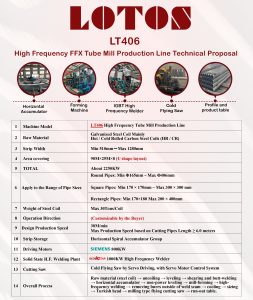

ERW406x8.0mm welded pipe production line
The ERW406mm High-Frequency Longitudinal Welded Pipe Production Line is a robust and efficient manufacturing system for producing steel pipes with outer diameters of φ165 to φ406mm and wall thicknesses ranging from 3.0mm to 8.0mm. This advanced line integrates the FFX (Flexible Forming Extended) process, which enhances productivity, precision, and flexibility.
Basic conditions:
strip steel | raw material | Low carbon steel and low alloy steel Q195, Q235, Q355, etc | |||
strip steel | internal diameter | φ610－φ760mm | |||
external diameter | φ1100－φ2100mm | ||||
Raw material weight | ≤25 | ||||
Steel strip width | 510－1280mm | ||||
Electrical installed capacity | 1800KVA | Coolant capacity | 100 | ||
Compressed air capacity | 3m3/min 4－7Kg/cm2 | ||||
Item | Steel pipe | ||||||
Tube range | Φ165～φ406mm | ||||||
Wall thickness range | 3.0-8.0mm | ||||||
Square tube range | 130×130-300×300mm 120×140-250×350mm | ||||||
Wall thickness range | 3.0-6.0mm | ||||||
The FFX (Flexible Forming Extended) process is an advanced manufacturing method that enhances efficiency and flexibility in tube production. By using shared rolls in the rough forming section, it reduces tooling requirements, changeover time, and costs. Below is the detailed step-by-step production workflow:
Loading trolley, uncoiling → straightening head → clamping and leveling → automatic shear butt welding → looper → forming, high-frequency welding, deburring, cooling, sizing, rough straightening → milling, sawing and sizing → inspection and collection → packaging → warehousing
