Car Bumper Roll Forming Machine
Automotive Bumper Roll Forming Machine: In the automotive industry today, structural body parts are generally made of A process offering an economic and flexible alternative is roll forming. Roll forming is a High volume, low cost, and high-quality product and flexible process due to its ability to be applied to a variety of part lengths and sheet materials as well as in combination with other processes such as stamping.

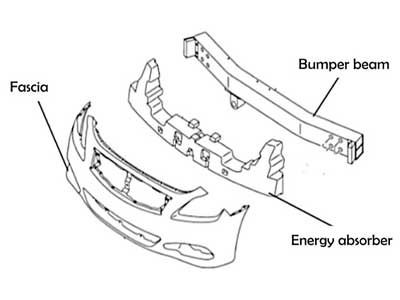

Furthermore, the investment for roll forming is low when compared to stamping and hydroforming. Roll forming is a manufacturing technology to obtain long parts with constant cross-sections. Typical applications in the automotive industry are bumpers, door beams, frame rails, and roof bows. We can design all production lines for complex door sash, window channels, bumpers, and running.
No. | Product Name | Specification | Qty | Unit | Unit Price (RMB) | Total Price (RMB) |
1 | HB-GY001 Loading Trolley | 5 tons | 1 | set | 3 |
|
2 | HB-GY001 Decoiler | 5 tons; max dia. 1500mm | 1 | set | 8 |
|
3 | HB-GY001 Shear & Butt Welder | 20 tons, oblique blade, thickness 1.0–2.0mm | 1 | set | 18 |
|
4 | HB-GY001 Hydraulic Press | 500-ton, three-beam four-column, 38.8 tons weight | 1 | set | 58 |
|
5 | HB-GY001 Servo Feeder | Siemens SIMOTION, Siemens servo motor, accuracy ±0.1mm | 1 | set | 12 |
|
6 | HB-GY001 High-Strength Precision Leveler | Roller dia ≤Φ50mm, 13 rollers, DC motor 45KW | 1 | set | 0 (not needed, 50) |
|
7 | HB-GY001 Forming Line | Gearbox, reducers, 36 units, cooling, DC motors, accessories | 1 | set | 121 |
|
8 | Roll Bending Device | 4 roll passes | 1 | set | 0 (not needed, 8) |
|
9 | Threshold Straightening | 2 sets | 2 | set | 0 (not needed, 4) |
|
10 | Electrical Control System | 4 DC motors | 1 | set | 26 |
|
11 | Flying Cutoff | Servo tracking | 1 | set | 14 |
|
12 | Hydraulic Station for Cutting | 18.5KW | 1 | set | 8 |
|
| Roll Forming Dies |
| 1 | set | 36 |
|
| Gantry Frame |
| 1 | set | 42 |
|
| Cutting Knife |
| 1 | set | 2 |
|
| Stamping Die |
| 1 | set | 12 |
|
| Laser Welding |
| 2 | set | 30 |
|
13 | Transport, Installation & Commissioning |
|
|
| 10 |
|
| Tax Included |
|
|
| 400 |
|
