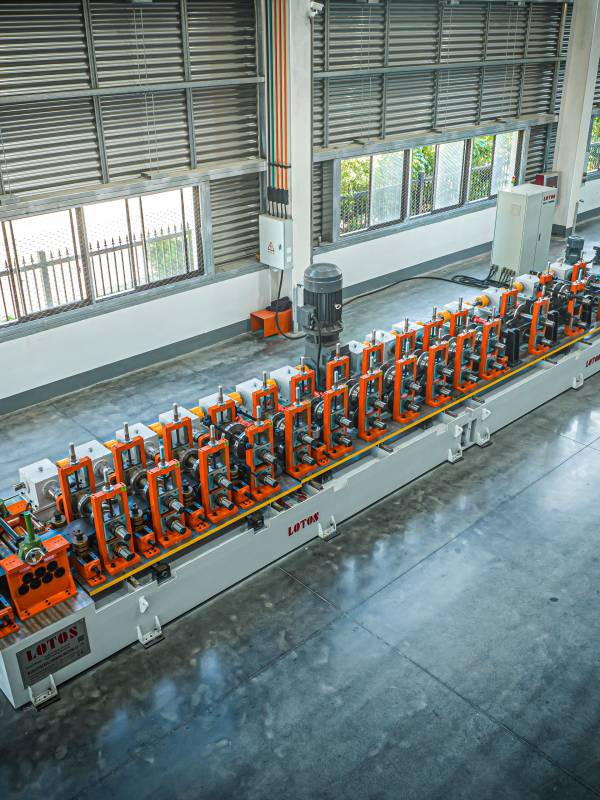

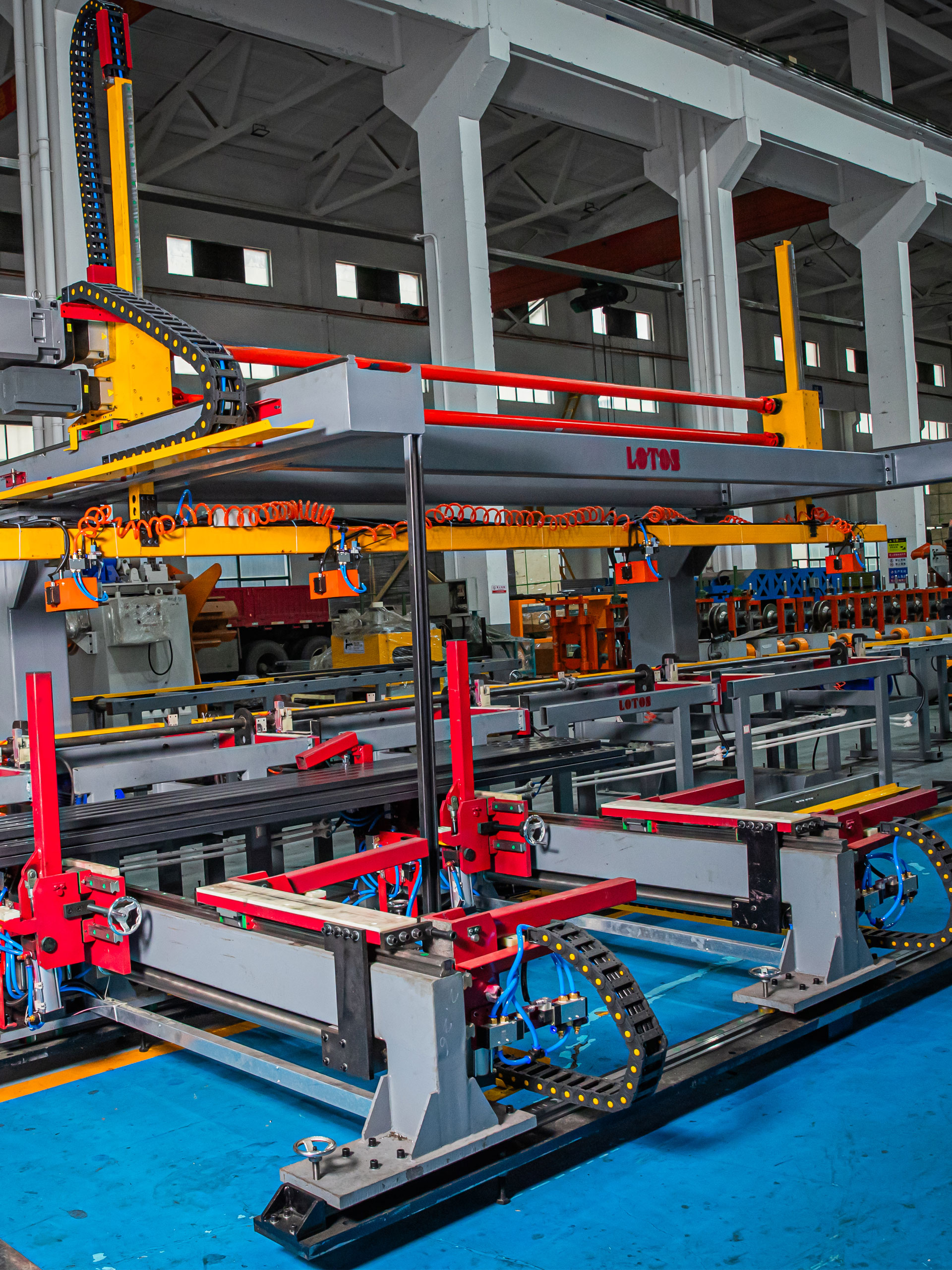

CU Solar Channel Line
CU Channel Roll Forming Machine
LOTOSFORMING proudly presents its CU Solar Channel Machine, a cutting-edge solution for manufacturers seeking precision, speed, and scalability in C channel production. This advanced roll forming equipment is specifically engineered to meet the growing demands of industries like construction, solar energy, automotive, and infrastructure.
High Performance C Channel Production Line
High Speed Production: Our machine delivers fast and consistent output, helping you meet tight project deadlines without sacrificing quality.

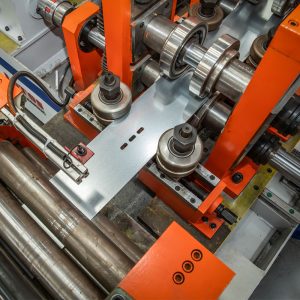

Automatic Multiple Punching: Integrated punching technology ensures accurate, clean, and customizable punching patterns with precise spacing for various applications.
Durable Construction: Manufactured with industrial grade components, this machine promises long-term stability and reliable performance under continuous operation.
Advanced Control System: The user-friendly interface allows easy adjustments and programmable settings for a streamlined production process.
Material Waste Reduction: Optimized punching systems are designed to minimize scrap, reducing overall production costs and maximizing material efficiency.
Versatility for Various Sizes: Capable of handling different C channel sizes and complex design requirements, making it ideal for a wide range of projects.
CU Solar Channel Technology
Whether for solar panel mounting structures or other industrial applications, LOTOSFORMING’s CU Solar Channel Machine offers the perfect balance of speed, precision, and flexibility. Enhance your production capacity while maintaining high-quality output and reduce operational waste with this reliable roll forming solution.

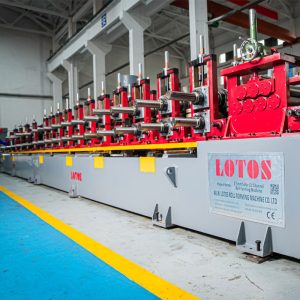

Solar Mounting Frame Roll Forming Machine
The C Channel Line is an essential solution in manufacturing PV mounting brackets, offering precision engineered C shape profiles with unparalleled efficiency. Designed for diverse applications, the C Channel Roll Forming Machine caters to industries requiring high quality structural components, such as solar panel installations. Featuring advanced automation and robust performance, this line seamlessly integrates with Unistrut Channel Roll Forming Machines and Purlin Roll Forming Machines to deliver versatile, durable, and customizable metal profiles. With LOTOSFORMING’s expertise, achieve superior productivity, precision, and cost-effectiveness for your industrial roll forming needs.

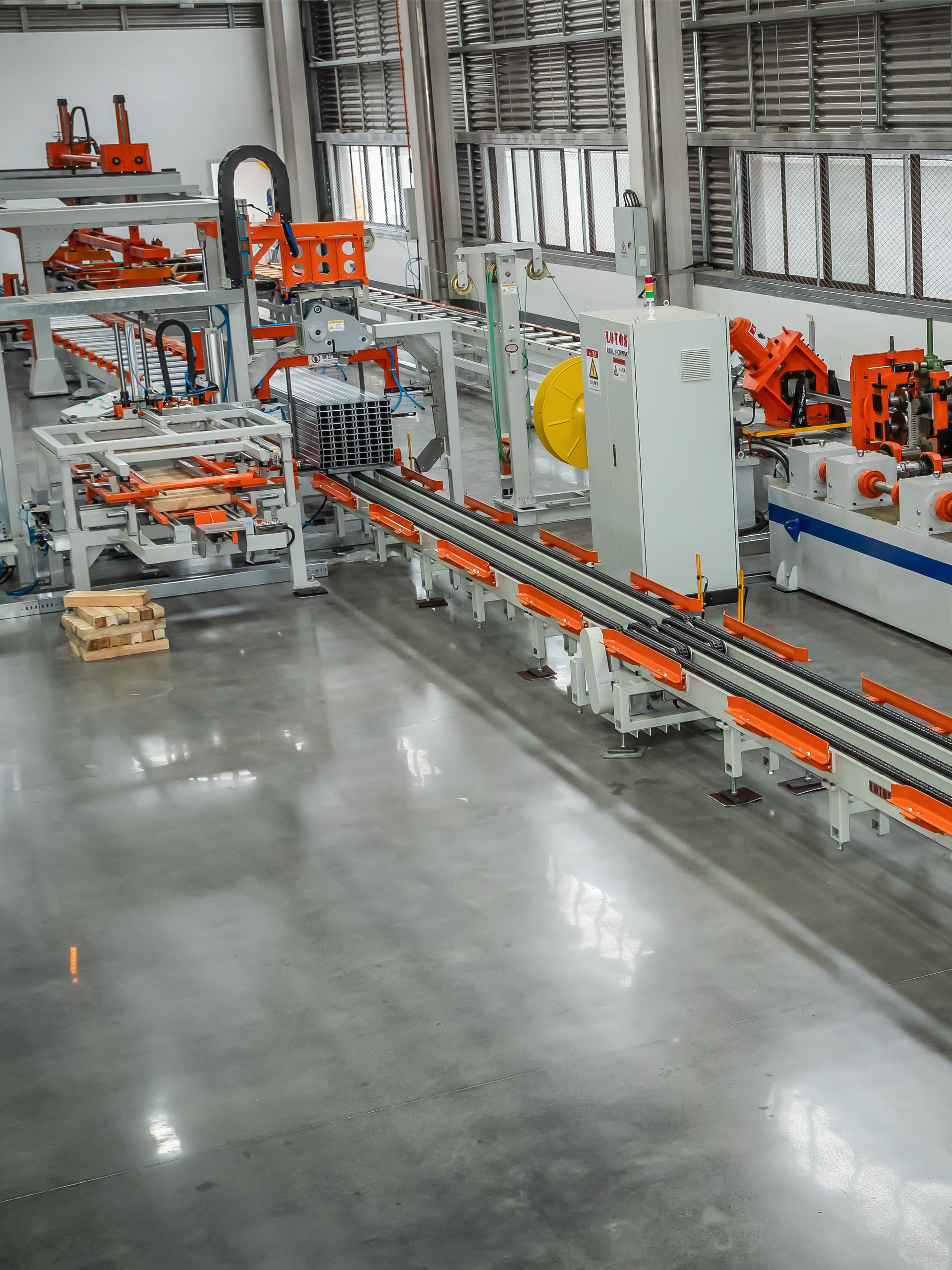

High Speed C Channel Line
| Hydraulic Decoiler+Loading Cart | ||
| Loading capacity | 8T | |
| Steel coil I.D. | Φ480-Φ550mm | |
| Steel coil O.D | Max Φ2200mm | |
| Cantilever width | 600mm | |
| Remark | l Motorized unwinding, hydraulic expansion l Coupled with loading cart l Coupled with disc brake l Coupled with press arm and support arm | |
| Shovel Feeder+Leveling | ||
| Shovel feeding | Press coil thread, with extension plate….send coil into leveling unit. | |
| Leveling | It is used to rough-straighten steel coils and plates before sending them to subsequent processes. | |
| Structure type | 2 units of pinch rollers, 5-roller leveling, fully hydraulic control | |
| Motor power | 11KW | |
| Pinch feeding speed | 10m/min | |
| Shearing and Butt-welding | ||
| Function | l Cut off the defective part at the beginning and end of the steel strip and the defective part in the middle of the coil. l Cut the head and tail before butt welding, so that the butt welding joints are straight and aligned, which is beneficial to butt welding. | |
| Structure type | Hydraulic shear + automatic welding | |
| Shear thickness | ≤4.0mm | |
| Maximum cutting width | 500mm | |
| Horizontal Accumulator (Option) | ||
| Principle | Used to store steel strips, store the butted strips in accumulator, and supply materials to the punch unit. The accumulator works in a fixed-loop system, with the outside in and the inside out. | |
| Accumulator diameter | Ф4.5M | |
| Strip width | 136mm~460mm(estimated) | |
| Strip thickness | 1.0-4.0mm | |
| Feeding motor power | AC 18.5KW | |
| Driven motor power | AC 22KW | |
C Channel Roll forming Mchine
| Roll Forming Machine | ||
| Roller groups | 20 stations | |
| Roller material | CR12 with heat treatment, HRC58-62° | |
| Arbor diameter | Φ85-105mm | |
| Arbor material | 42CrMo4 with quenching and tempering | |
| Motor | 15KW*2 sets, Siemens BEIDE | |
| Width/height adjustment | Driven by servo motor, XINJE 2.2KW | |
| Transmission way | 230# Gearbox | |
| Machine frame body | Integrated welded plate housing frame | |
| Roller supporter | Casting pillar stands | |
| Linear Bearings | THK, Japan | |
| Remark | l Replace the toolings for angle 105°/110°/115° l Coupled with safety guard l Apply EM Stop to the feeding guide | |
