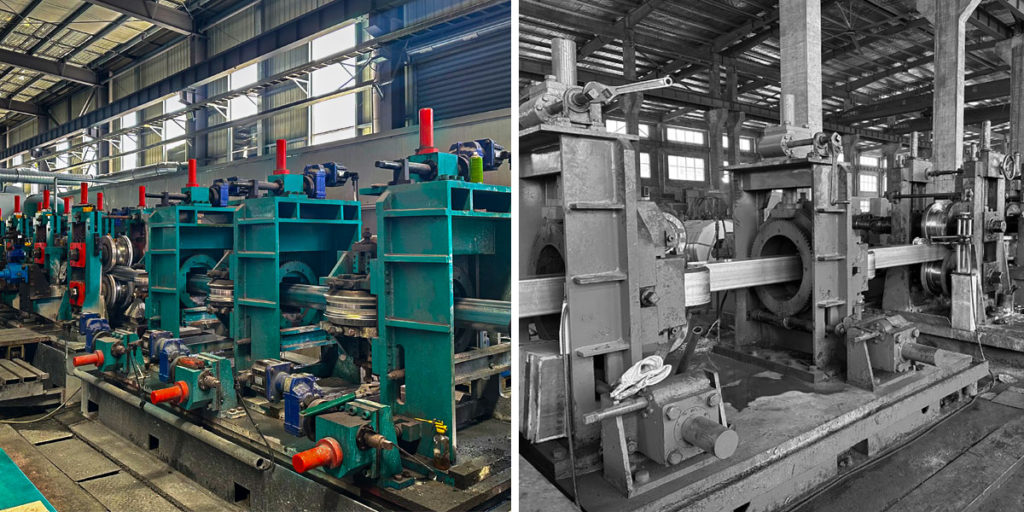

ERW Tube mill VS FFX Direct Tube Mill Lines

In the world of tube manufacturing, selecting the right tube mill line is critical for achieving high quality production and operational efficiency. Two prominent methods in tube manufacturing are the ERW (Electric Resistance Welded) Tube Mill and the FFX (Flexible Forming) Direct Tube Mill. Here, we’ll break down the key aspects of these tube mills to help you determine the best option for your production needs.

ERW Tube Mill

The ERW tube mill line utilizes electric resistance welding to produce high strength tubes. This technique involves passing an electric current through metal, heating it to its melting point, and fusing the edges together without any filler materials. Due to its precision and ability to work with a range of metals, ERW technology is widely favored in industries requiring strong, uniform tubing.

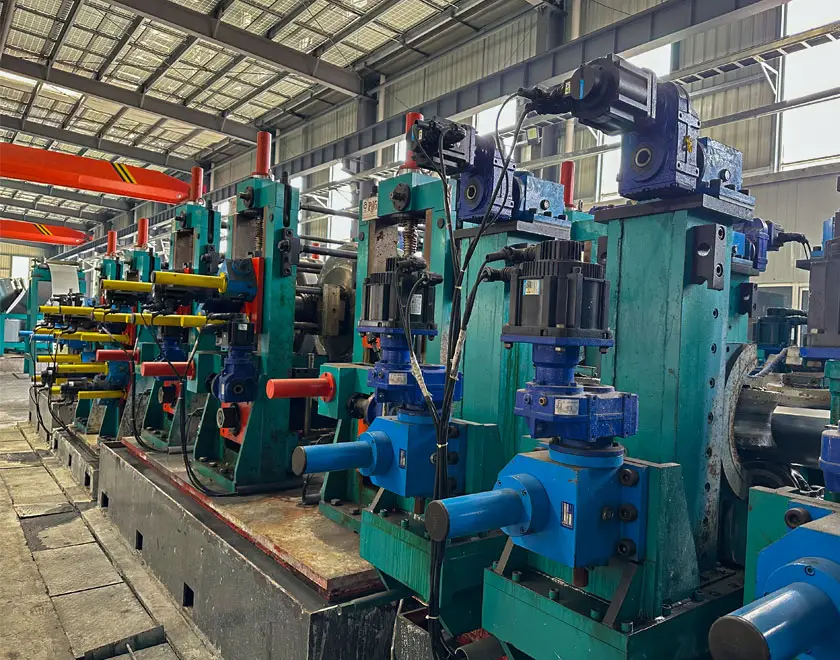

FFX FORMING TECHNOLOGY TUBE MILL

The FFX (Flexible Forming) Direct Tube Mill takes a different approach, allowing for direct roll forming of tubes with minimal setup time. Unlike conventional roll forming, FFX technology adjusts the forming rolls automatically, reducing the need for manual roll changes. This flexible system offers a streamlined solution for producing a wide range of tube diameters on the same line, making it ideal for high-mix, low-volume manufacturing.

Direct Forming Technology(DFT)

When comparing production efficiency, FFX Direct Tube Mills generally excel in flexibility and reduced downtime, as they do not require frequent roll changes. This makes FFX technology ideal for shorter production runs with varied specifications. However, ERW Tube Mills are often preferred in applications demanding large-scale production with consistent, high-quality results, as their setup is optimized for long production runs.

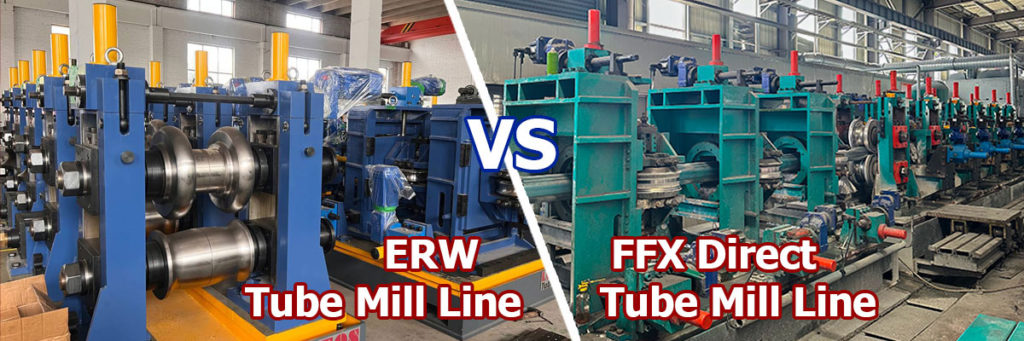

ERW Tube Mill compared to FFX direct tube mill lines

The comparison between ERW (Electric Resistance Welding) Tube Mills and FFX (Flexible Forming and Sizing) Direct Tube Mill Lines highlights differences in their operation, flexibility, and efficiency. Here’s an overview to help you understand their distinct characteristics:

1. Forming Technology

• ERW Tube Mill:
  • Uses traditional forming methods where specific sets of rollers are used for each tube size.
  • Requires multiple roll changes for different tube dimensions, which can lead to downtime.
• FFX Tube Mill:
  • Utilizes a flexible forming and sizing system, enabling the production of tubes with variable dimensions using fewer roller sets.
  • Eliminates frequent roll changes, increasing efficiency and reducing changeover times.

2. Flexibility

• ERW Tube Mill:
  • Less flexible as each tube size needs dedicated tooling and setup.
  • Ideal for high-volume production of standard tube sizes.
• FFX Tube Mill:
  • Highly flexible, capable of producing a wide range of sizes and shapes (square, rectangular, and round) without significant setup changes.
  • Perfect for small to medium production batches with varied requirements.

3. Setup Time

• ERW Tube Mill:
  • Longer setup time due to the need for roller changes and manual adjustments.
  • More downtime when switching between product types.
• FFX Tube Mill:
  • Minimal setup time because of the ability to adjust rollers dynamically.
  • Supports faster transitions between sizes and shapes.

4. Production Efficiency

• ERW Tube Mill:
  • High efficiency for mass production of a single tube size or shape.
  • Suitable for applications where consistent, large-scale production is the goal.
• FFX Tube Mill:
  • Improved efficiency for diverse production needs with minimal material waste.
  • Offers consistent quality even with frequent size changes.

5. Initial Investment

• ERW Tube Mill:
  • Lower initial cost compared to FFX systems.
  • Best suited for companies with straightforward, high-volume production needs.
• FFX Tube Mill:
  • Higher initial cost due to advanced technology and flexibility.
  • Long-term cost savings from reduced tooling and increased efficiency.

6. Operational Costs

• ERW Tube Mill:
  • Higher operational costs over time due to frequent tooling changes and downtime.
• FFX Tube Mill:
  • Lower operational costs thanks to reduced tooling, faster changeovers, and less downtime.

7. Applications

• ERW Tube Mill:
  • Ideal for standardized industries such as oil and gas, construction, and automotive.
• FFX Tube Mill:
  • Best for industries requiring a variety of shapes and sizes, such as furniture, lightweight structures, and custom applications.

What is the new technology in tube mills pipe manufacturing?

Both ERW and FFX systems produce high quality tubes, but their processes lead to distinct differences in tube consistency and structural integrity. ERW technology ensures uniformity and strength, which is essential in applications where tube consistency is paramount. FFX systems, with their flexible forming process, can produce a variety of tube sizes without sacrificing quality, making them a valuable choice for industries where versatility is prioritized.

Choosing the appropriate tube mill line is essential for optimizing production efficiency, reducing costs, and meeting industry standards. Whether you lean toward ERW or FFX, understanding these key distinctions will help you make an informed decision for your manufacturing needs.
