Metal Stud Forming Machine

Steel Framing Machine

LOTOS provides a complete line for ▷ Steel Stud Roll Forming Machine | Light Gauge Steel Framing 2O19 ◁. Studs roll forming machine, metal stud making machine, Furring Channels roll forming machine, Ceiling Channels roll forming machine, and steel frame roll forming machine are among the range of production line produced to service the drywall installers. Our steel framing machine Are Favored By Customers All Over The World, Welcome To Buy metal stud forming machine From Us!





Steel Stud Manufacturing

CAD/CAM Roll forming Machine

LOTOS design CAD/CAM Roll forming machine for the target of producing Light Steel Framing. Each part is dimpled and notched with the holes ready to accept fasteners so that components self-clip together with no clamping. This design enables to snap the parts together, add the fasteners and have a completed frame. We design CAD/CAM Roll forming machine for the purpose of producing light steel framing.

CADCAM LSF- Light Steel Frame

Steel Frame Roll Forming Machine

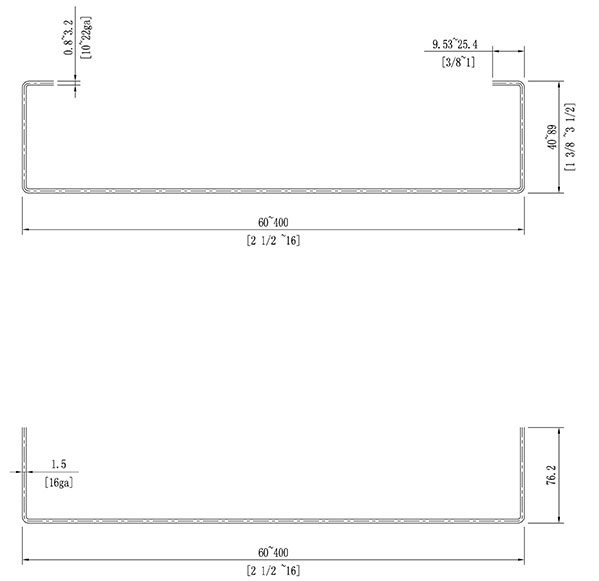

LOTOS is the china’s supplier in manufacturing Industrial Level Steel Stud and Track Roll forming lines, Stud and runner roll forming machine engineered to produce a wide range of profiles steel framing components, steel stud machine roll forms steel stud, and track members for use in wall, floor and truss framing. Metal Profile Stud & track for partition system is made of galvanized steel, including Stud, Track, C-Channel, Corner bead & accessories.



Light Steel Framing Machine

light gauge steel framing for building application. LOTOSFORMING is a steel stud manufacturing of steel stud roll forming machine. We produce steel framing machine that is suited for any type of projects.
Our metal stud machine for sale are well suited for any type of construction project. building with a Light Steel Framing is an innovative solution with numerous applications. projects.

ADVANTAGES OF LIGHT GAUGE STEEL CONSTRUCTION:

  • Their higher strength allows greater spacing between members when compared to wood frame construction.
  • It is easy to change or modify this construction at any point in its lifespan.
  • There is a great range of systems and products catering to this type of construction.
  • Light gauge steel structures are non-combustible, which is a code requirement for some types of structures.
  • Light gauge steel structures do not rot, shrink, warp, or decompose like wood structures, and can be used in areas where there is a probability of termite attack.

LOTOS Building Light gauge steel framing roll forming machine, fully automatic, hydraulic system, with the tolerance of punching is ±0.5mm.A process on roll forming line for screw hole, chamfer, web through a hole, small side shear, pipeline hole, web necking, shear, web foundation hole, etc.

light gauge steel framing

stud and track roll forming machine

  • Summary of Steel Stud and Track Roll forming lines

Material: Galvanized Coil

Material Thickness: 0.5-0.9mm

Main roll forming machine Power: 5.5KW

Forming Speed: 25-30m/min

Dimension: 6×0.7×0.8 m (L*W*H)

  • Main Parts
  1. Manual uncoiler
  2. Feeding Guide
  3. Roll Forming System
  4. Hydraulic Cutting
  5. Control system
  6. Output table
  • Working Flowing

Manual Uncoiler    —>       Feeding       —>      Roll Forming    —>      Cutting   —>  Output table

Ceiling Channels roll forming machine

Light Gauge Steel Framing Machine:

Main components:

ItemDescriptionQuantity
1Decoiler1 Nos
2Main roll forming machine with punching and cutting units1 Nos
3Controller1 Nos
4Out-put table1 Nos
5Spares and tools1 Nos



No.DescriptionSpecification
1PerformanceTransmission typeServo motor + chain
Hydraulic station motor powerApprox 5.5kW
ProductivityApprox 33m/min
Accuracy±1mm
2Main machineRoll former stationApprox 14stations
Roller materialGCr15 bearing steel chromed
Side plateAluminum alloy with anode treatment
Spindle material40Cr thermal refining
3PunchingBefore formingHydraulic cylinder pre-punching
Punch materialCr12MoV
Mould quality6Nos
4CuttingAfter formingHydraulic cylinder profile-cutting
Blade materialCr12MoV
Mould quality1Nos
5ControlProductionWindows 8
CommissioningWireless remote
6DecoilerAutomatic decoilerElectrical expansion
Loading capacityMax. 3tons
Internal diameter of coil430mm-590mm
Outer diameter of coilMax. 1300mm
Width of coilMax. 450mm
Thickness of coil0.75-1.2mm
Raw material of coilG550







Rating
Stud and Track Roll forming lines

Product Name: Stud Roll Forming Machine

Availability: InStock
