Foundation and Layout of Solar Structure Roll Forming Line
A properly designed Solar Mounting Structure Roll Forming Line Foundation is essential for ensuring production precision, vibration control, and long term operational stability. Roll forming machines used in solar mounting structure manufacturing operate continuously under dynamic loads, making foundation engineering a critical part of factory planning and installation.
For high-performance production systems supplied by Lotosforming, the foundation must be designed according to mechanical load distribution, machine layout requirements, and industrial safety standards.
Importance of Foundation for Solar Structure Roll Forming Line
The foundation serves as the structural base supporting the roll forming equipment, ensuring proper alignment of forming stations and stable operation during high-speed production.
A well-designed foundation provides:
- Accurate alignment of roll forming stands
- Reduced vibration during operation
- Long service life of machine components
- Stable production speed and product accuracy
- Safe load distribution across factory floor
- Proper positioning of electrical and hydraulic systems
Improper foundation design may lead to misalignment of rollers, increased wear of mechanical parts, and reduced quality of solar mounting profiles.
Main Components Supported by the Foundation
A solar structure roll forming line typically includes several heavy duty components that require precise positioning on the factory floor.
Key Equipment Sections:
- Decoiler unit
- Leveling system
- Servo feeding system
- Punching press unit
- Roll forming machine stands
- Cutting system (flying cut or hydraulic cut)
- Run-out table and stacking system
- Electrical control cabinet
- Hydraulic power unit
Each section must be installed on a leveled and reinforced concrete base to ensure correct machine alignment.
Technical Specifications of Roll Forming Line Foundation
1. Reinforced Concrete Structure
The foundation is typically constructed using reinforced concrete designed to withstand both static and dynamic loads generated during production.
General technical characteristics:
- Concrete grade suitable for industrial loads
- Reinforcement bars to prevent cracking
- Surface flatness tolerance for machine alignment
- Anti-vibration capability
- Long-term structural stability
2. Load Distribution and Machine Weight Considerations
The foundation must support concentrated loads from forming stands, punching units, and drive systems.
Engineering design considers:
- Total machine weight
- Coil material weight on decoiler
- Dynamic forces from punching operations
- Continuous vibration from roll forming process
- Load transfer to factory floor
Proper load distribution prevents structural deformation and maintains consistent forming accuracy.
3. Anchor Bolt Positioning
Anchor bolts are installed within the concrete foundation to fix machine frames securely.
Important factors:
- Accurate anchor bolt positioning according to machine layout drawing
- Correct bolt depth for strong fixation
- Alignment tolerance control
- Secure connection between machine base and foundation
Correct anchor bolt installation ensures machine stability during operation.
4. Machine Layout and Space Planning
Efficient layout design improves production flow and maintenance accessibility.
Layout planning considerations include:
- Coil loading area space
- Operator movement pathways
- Electrical cable routing channels
- Hydraulic piping access
- Maintenance space around machine stands
- Safety distance between equipment sections
- Material flow direction
Optimized layout reduces installation errors and improves factory productivity.

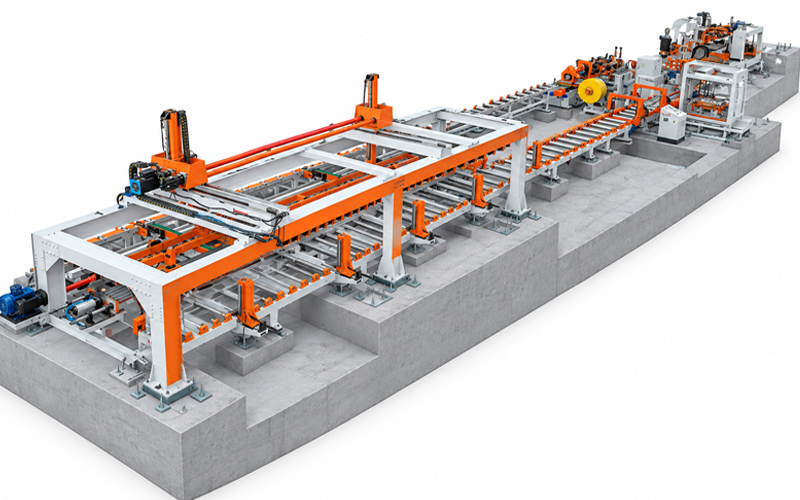

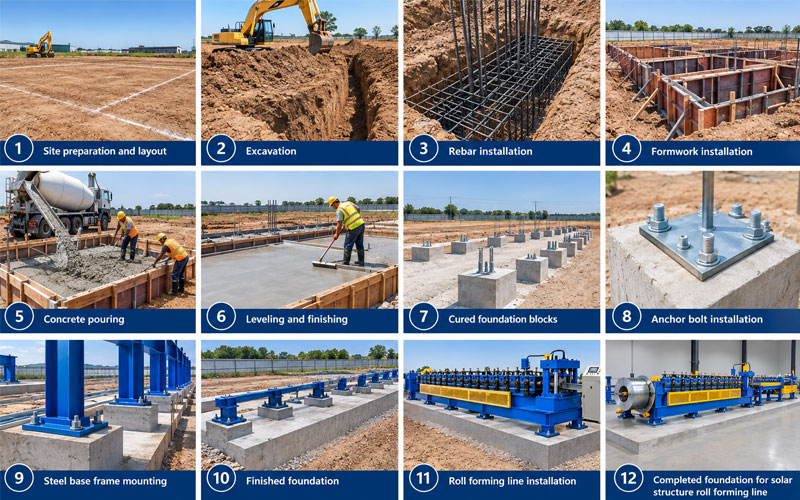

Foundation Preparation Steps
Step 1: Site Inspection
Before installation, the factory floor must be inspected to confirm load capacity and level conditions.
Step 2: Foundation Drawing Approval
Engineering drawings specify foundation dimensions, anchor bolt locations, and machine positioning.
Step 3: Concrete Pouring and Curing
Concrete must be fully cured before machine installation to achieve maximum strength and stability.
Step 4: Machine Installation and Alignment
After curing, machine components are installed and aligned precisely to ensure straight product forming.
Step 5: Final Inspection and Adjustment
Final inspection verifies machine level accuracy and operational readiness.
Advantages of Proper Foundation Engineering
A professionally designed foundation improves:
- Roll forming accuracy
- Punching precision
- Structural strength of solar mounting profiles
- Equipment lifespan
- Production efficiency
- Maintenance accessibility
- Operational safety
Stable foundation conditions allow the roll forming line to operate smoothly even at high production speeds.
Conclusion
The Solar Mounting Structure Roll Forming Line Foundation plays a fundamental role in achieving precise manufacturing results and long-term machine reliability. Proper engineering design ensures stable machine installation, reduces vibration effects, and supports continuous production performance.
Lotosforming recommends following professional foundation drawings and installation standards to guarantee optimal alignment, operational safety, and maximum productivity for solar structure roll forming lines.
