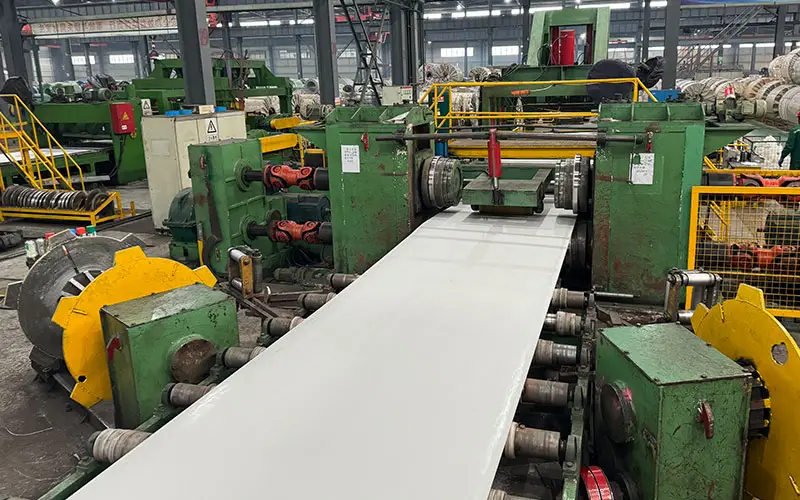

Heavy Gauge Cut-to-Length (CTL) Machine

A Heavy Gauge CTL Machine is engineered to handle thick, heavy-duty metal coils and cut them into precise sheet lengths. These machines are essential for industries requiring durable and robust flat sheets for demanding applications like construction, shipbuilding, and heavy machinery.

Thickness Capacity: Processes materials from 8mm to 25mm.
Width Capacity: Handles coils up to 2500mm wide.
Coil Weight: Capable of managing coils up to 35 tons or more.

Heavy Gauge Cut-To-Length Lines

Technical Specifications:

Parameter	Details
Material Thickness	8mm – 25mm
Material Types	Carbon Steel, Alloy Steel, Stainless Steel
Coil Width	Up to 2500mm
Coil Weight	Up to 35 tons
Cutting Length Range	1000mm – 15,000mm (customizable)
Line Speed	20 – 40 meters per minute
Length Tolerance	±0.5mm
Leveler Rolls	5–9 Rolls with reinforced backup rolls
Cutting System	Hydraulic Guillotine Shear or Rotary Shear
Stacking Options	Heavy-duty pneumatic or magnetic stacking
Control System	PLC with HMI interface
Power Supply	380V/50Hz or customized for regional standards
Machine Dimensions	Approx. 50m (L) x 10m (W)

For additional information on Heavy-Duty Slitting Lines and Cut-to-Length (CTL) Lines, visit our dedicated website: www.lotosslitting.com.
