High Speed Fully Automatic 4 mm C/U Solar Machine (30M/Min)

Automatic C/U Purlin Roll Forming Line

The LOTOS C/U Purlin Roll Forming Line is a state of the art and fully automated production system designed for manufacturing high strength and dimensionally accurate steel profiles. Engineered for reliability and efficiency, this machine delivers outstanding performance for industrial construction and solar structure applications.

Categories , , Tags ,
High Speed 4MM CU Solar Channel Line (30m/min)
High Speed Fully Automatic 4 mm C/U Solar Machine (30M/Min) - Image 2
High Speed 4MM CU Solar Channel Line

Product description

  • Key Features:

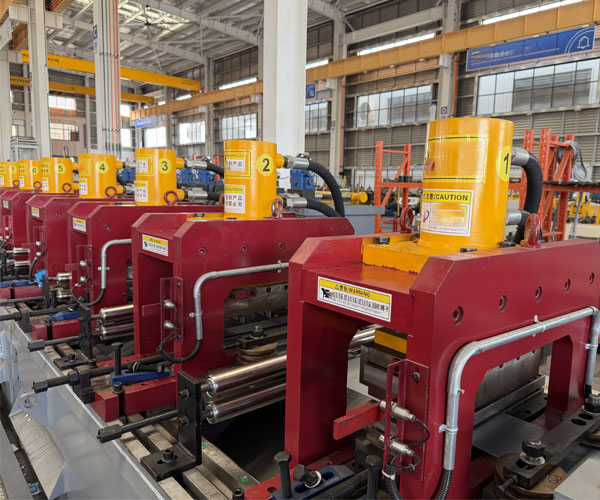

    Heavy Duty Punching Unit: Mortise & tenon punch frame with 8 punching stations, made of CR12MOV steel with precision machining for superior durability.

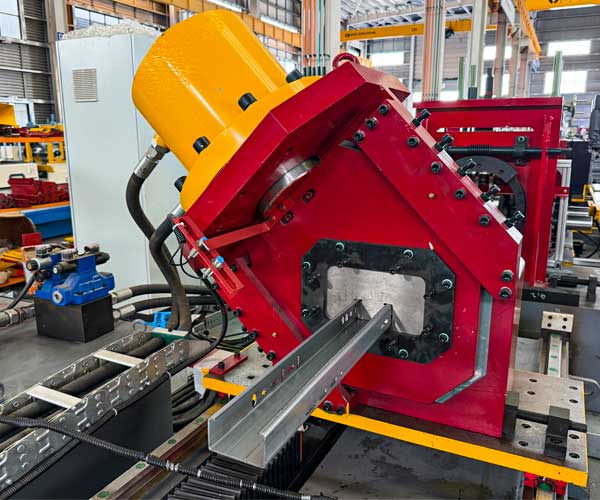

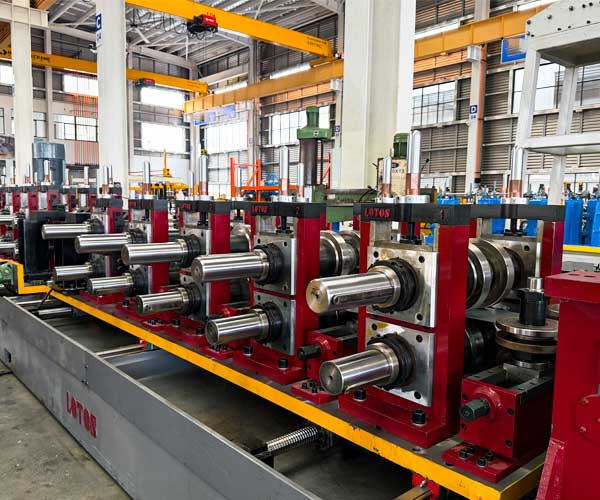

    Roll Forming Stations: 19 stations for C purlins (90°) and 22 stations for angular purlins, equipped with hardened CR12MOV rollers (HRC 58–62°) ensuring consistent accuracy.Powerful Transmission: 75KW Siemens motor, spiral bevel gearbox, and integrated welded frame for maximum strength and stability.Non Stop Flying Cut System: Servo tracking cutting die with 2 interchangeable molds for flexible size adjustment.

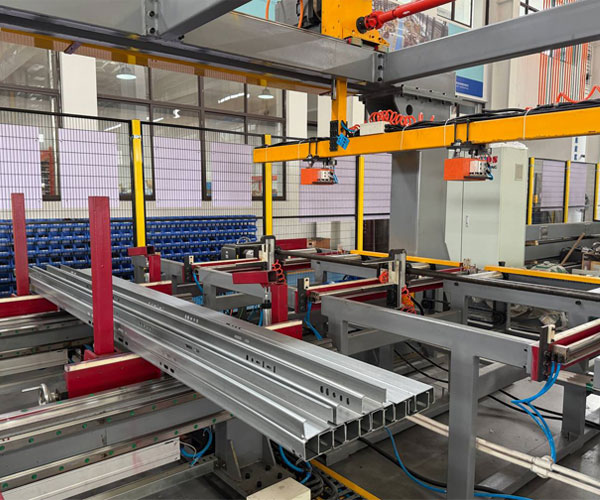

    Automated Stacking & Handling: Motorized conveyor with overturning system and magnetic claw, ensuring precise positioning and stacking of finished purlins.This production line is the ideal choice for manufacturers seeking fast, accurate, and cost-efficient production of C and U purlins for industrial and solar energy projects.
High Speed Fully Automatic 4 mm C/U Solar Machine (30M/Min)

working flow:

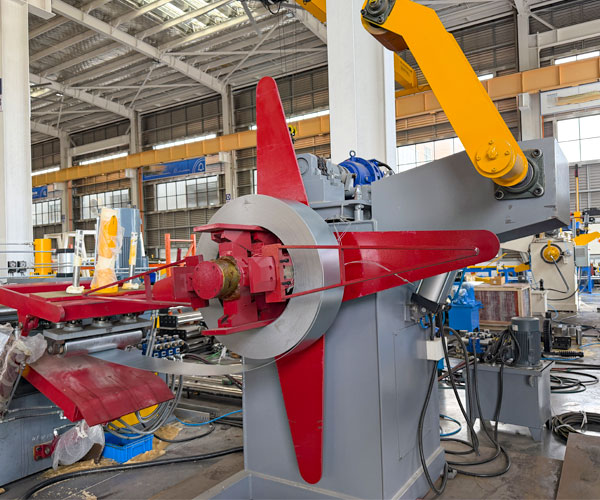

Hydraulic Decoiler+Loading Cart → Shovel Feeder+Leveling → Shear and Butt-welder →Horizontal Accumulator Leveling on Bridge Looper 1# Clamping Feeding Servo Feeding+5-roller Leveling+Hydraulic Punch Station (8 units of punch seats) → Punch Waste Collection Device → Looper 2# → Roll Forming Machine → Flying Cutting Die → Conveyor Auto Stacker

FAQ:

1. What materials can this C/U Purlin Roll Forming Machine process?This machine is designed for cold-rolled galvanized steel, hot-rolled steel, and other structural-grade materials with maximum thickness up to 4 mm, ensuring durability and strength for industrial and solar projects.

2. What is the lifespan of the rollers and cutting dies?Rollers are made of heat-treated CR12MOV (HRC 58–62°) with long service life under heavy-duty use. Cutting dies are also CR12MOV and can be re-sharpened or replaced depending on production volume.

3. Is after-sales service and training provided?Yes. LOTOS provides global installation, operator training, and technical support,as well as spare parts supply for long-term reliability.
