Product description
Process Flow:

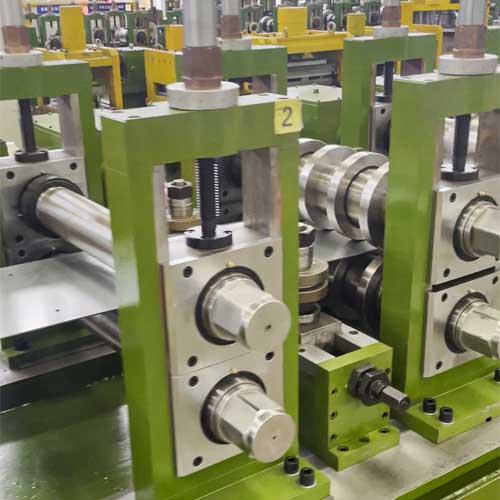

Loading Cart → Hydraulic Automatic Uncoiler → Leveler → Shear & Butt Welder → Spiral Loop Accumulator → Overhead Puller → 6-Station Punching System + Servo Feeding System → Forming Mill → Servo Tracking Hydraulic Flying Shear → Intelligent Roller Conveyor → Automatic StackerLorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Detailed Equipment Specifications
Hydraulic Uncoiler + Loading Cart
- Pneumatic pressure arms prevent coil unraveling during rotation.
- Side flanges on both sides prevent coil spreading.
- Wedge-type expansion: more durable than standard hinge expansion.
- Turntable made of 48 mm thick steel plate—resists deformation.
- Main shaft: 40Cr alloy steel—enhanced durability.
- Rotary hydraulic cylinder expansion ensures no rotation slippage.
- Reinforced pneumatic brake disc—resists fracture during emergency stops.
- Clutch: 40Cr, quenched & tempered for higher strength.
- Reversible operation for both coiling and uncoiling.
Shear & Butt Welding Platform
- Components: front/rear pinch rolls, guide units, movable pressure plates, hydraulic shear, welding unit.
- High automation for easy head/tail cutting and welding.
- Raw material: Q195–Q420 hot-rolled low-carbon steel, galvanized or Zn-Al-Mg strip.
- Width ≤ 500 mm; Thickness: 2.0–5.0 mm.
- Key components:
- Pinch rolls (2 sets): φ100×500 mm, chrome-plated.
- Guide units (2 sets): vertical rolls, base rails, slide blocks, adjusting screws.
- Movable pressure plates: hydraulically actuated.
- Hydraulic shear: blade size 25×500 mm.
- Welding platform: upper/lower plates, hydraulic cylinders, 20 mm copper busbar for high welding current.
- Welding method: MIG welding.
Spiral Loop Accumulator
- Components: deflector frame, feed unit, loop drum, control cabinet.
- Deflector frame: adjustable 30°–60° angle to guide strip vertically.
- Feed unit: 2-roll pinch, pneumatic pressure. Motor: 30 kW/4-pole VFD. Speed: 60 m/min.
- Loop drum: 6 m diameter.
- Horizontal drive rolls:
Leveling & Pulling Unit
- Overhead puller with leveling function.
- 5-roll leveling (3 bottom, 2 top). Top rolls fixed on bearing housings, lifted/lowered by hydraulic cylinders and synchronized gears.
- All 5 rolls driven synchronously for smooth operation.
- Motor power: 18.5 kW.
- Max strip thickness: 5.0 mm; width: 500 mm.
- Storage capacity: ~15T.
- Drive: 11×4 kW AC VFD motors (total 44 kW), R67 gearboxes.
- Inverter: 45 kW vector type.
- Exit cage: barrel-shaped with 8×φ120 mm exit rolls (45# seamless tube, quenched).
- Exit speed: ≤40 m/min (follows line speed).
- Feeding mode: outer-in, inner-out fixed-loop.

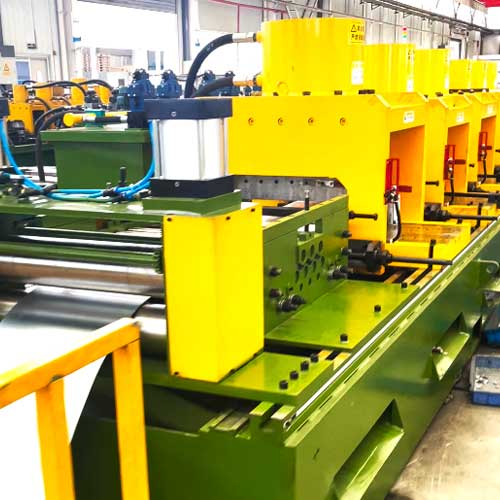

6-Station Punching Unit + Servo Feeding System (Punching dies not included)
- Infeed pinch rolls: 2-roll, 1.5 kW motor, pneumatic lift.
- 7 leveling rolls (4 bottom, 3 top) before punching for flatness and precision.
- Die frame: mortise-and-tenon structure, secured by countersunk screws. Made of 45# steel, precision-machined on CNC center.
- Hydraulic cylinder rods connected via pinned joints to prevent loosening.
- 30 kW servo motor + planetary gearbox drives 3 pairs of φ160 mm rolls (hard-chrome plated, ground, quenched) for strong, slip-free traction.
- Enables continuous programmed punching across multiple stations.
- Each station has automatic centering via lead screw with left/right threads.
- Side guide rollers adapt to varying strip widths for high hole-position accuracy.
- All hydraulic die frames mounted on linear rails with T-slots for locking at any position.
- Hydraulic power unit: 55 kW ×1, recommended with air-conditioned oil cooler for stable temperature during long runs.
- One station can drive 4 hydraulic cylinders.
- Cooling: air-conditioned oil cooling.
- Servo motor with flange coupling.
- Features: 30 kW servo drive, multi segment feeding (programmable lengths), LCD touchscreen for parameter setting, auto-start linked to hydraulic system.
- Feeding speed: up to 90 m/min.

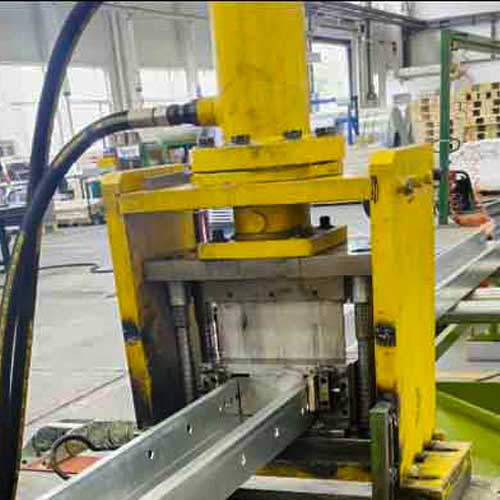

Servo Tracking Hydraulic Flying Shear
- Cutting method: servo tracking + vertical hydraulic die cut
- Control: PLC
- Cut length accuracy: ±1 mm
- Hydraulic motor: 22 kW
- Tracking speed: ≥40 m/min
- Linear rails: SIDENS
- Cut length: 1–12 m (continuously adjustable)
- Traverse motor: 11 kW INOVANCE servo
