Core Components of a Modern Tube Mill Equipment
1. Uncoiler & Strip Accumulator
- Function: Feeds coil strip continuously into the forming section while enabling non-stop coil changeovers.
- Technical Specs: DC/AC variable speed drive, hydraulic tension control, double-arm or cantilever design, looping capacity ≥15m for seamless transition.
- Engineering Note: Proper tension profiling prevents edge stretching, camber induction, and weld seam misalignment downstream.
2. Edge Mill & Strip Conditioning Unit
- Function: Trims coil edges to exact width, removes mill scale/defects, and prepares optimal V-angle geometry for welding.
- Technical Specs: Carbide tipped rotary cutters, precision edge deburring, width tolerance ±0.1mm.
- Engineering Note: Edge quality directly impacts HF weld penetration, porosity risk, and downstream sizing load.

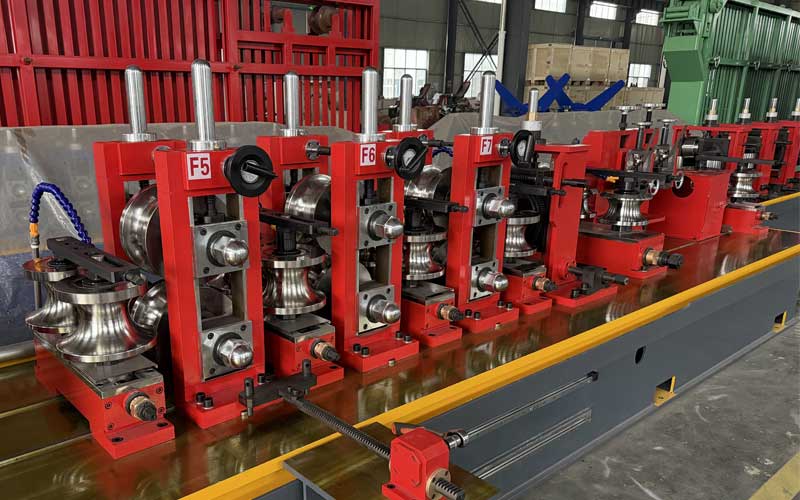

3. Forming Section (Roll Pass Design)
- Function: Progressively bends flat strip into a closed cylindrical shape through 10–28 stand pairs.
- Technical Configurations:
- Breakdown Forming: Faster changeover, ideal for standard OD ranges
- Cage Forming: Superior edge control, preferred for thin wall and high yield materials
- Engineering Note: Lotosforming utilizes FEA based roll pass simulation to balance bending strain, minimize springback, and optimize neutral fiber positioning. Rolls are CNC ground from Cr12MoV/D2 with vacuum quenching (58–62 HRC) and surface finishes ≤ Ra 0.4μm.
4. High Frequency (HF) Welding System
- Function: Fuses open seam edges using resistive heating and forge pressure without filler material.
- Technical Specs: Solid state HF generators (300–800 kHz), impedance matching networks, squeeze rolls with adjustable pressure (10–40 kN), V-angle control (2°–6°).
- Engineering Note: Frequency selection depends on material thickness and magnetic permeability. Stainless and high alloy grades require precise frequency modulation to avoid overheating or incomplete fusion.
5. Sizing & Straightening Section
- Function: Corrects OD, roundness, and straightness post weld while relieving residual forming stress.
- Technical Configurations: Diamond sizing, 4–10 stand Turk’s head straighteners, roll crown adjustment, closed-loop OD monitoring.
- Engineering Note: Final tolerances typically achieve OD ±0.05mm, ovality ≤0.10mm, and straightness ≤1.5mm/m. Proper roll crown compensation prevents flat spots or longitudinal marking.
6. Flying Cut Off & Run Out System
- Function: Synchronizes with line speed to cut tubes to precise lengths without stopping the mill.
- Technical Specs: Servo-driven cold saw or carbide tipped rotary shear, chip extraction, automated stacking/banding.
- Engineering Note: Cut tolerance ±0.5–1.0mm. Blade geometry and feed rate must match material hardness to prevent burr formation or tube deformation.
Industry 4.0 Integration in Tube Mill Equipment
- PLC Synchronized Control: Multi-axis servo coordination ensures forming stands, HF welder, sizing units, and cut-off operate within ±0.1° phase alignment.
- Real-Time Dimensional Monitoring: Laser OD/wall thickness gauges feed closed-loop correction to sizing stands and HF power output.
- Predictive Maintenance: Vibration, temperature, and current sensors on main drives, bearings, and HF transformers trigger maintenance alerts before unplanned downtime occurs.
- MES/ERP Connectivity: Production logging, OEE tracking, recipe management, and remote diagnostic access enable data-driven optimization across shifts and facilities.
- AI-Assisted Weld Monitoring: Machine vision and thermal imaging analyze bead profile, spatter, and cooling patterns to auto adjust HF parameters and squeeze roll pressure.
Why Lotosforming Leads in Tube Mill Equipment Design
Every forming schedule is stress-tested virtually before machining, minimizing trial runs and ensuring first-run accuracy.
5-axis grinding centers, vacuum heat treatment, and optional PVD/nitriding coatings extend roll life by 30–50% in high-yield and coated material applications.
Cartridge style forming stands, standardized mounting interfaces, and recipe-driven PLC parameters enable product changeovers in under 20 minutes.
CE-certified safety architectures, ISO 9001 QA workflows, and deployment across structural, automotive, fluid transport, and industrial sectors in 40+ countries.
From coil specification analysis and line layout simulation to FAT/SAT commissioning, remote troubleshooting, and spare parts optimization, Lotosforming engineers remain embedded in your production lifecycle.
FAQ :
Tube mill equipment continuously forms, welds, sizes, and cuts coiled metal strip into precision welded tubes for structural, automotive, fluid transport, furniture, and industrial applications.
HF welding uses alternating current (300–800 kHz) to induce resistive heating at the open seam edges. Squeeze rolls apply forge pressure to fuse the material without filler, creating a clean, high-strength seam.
Roll lifespan depends on material hardness, coating type, and line speed. Typically, Cr12MoV/D2 rolls last 500–1,500 tons before regrinding or replacement. Predictive wear monitoring optimizes change intervals.
Tube mill equipment is a continuous, automated production line that transforms coiled steel, stainless steel, or aluminum strip into precision welded tubular sections. The process integrates strip conditioning, progressive cold roll forming, high-frequency (HF) resistance welding, precision sizing, straightening, and flying cut-off into a synchronized manufacturing flow. Lotosforming designs tube mills for structural tubing, automotive frames, fluid transport pipes, furniture profiles, and industrial applications.
