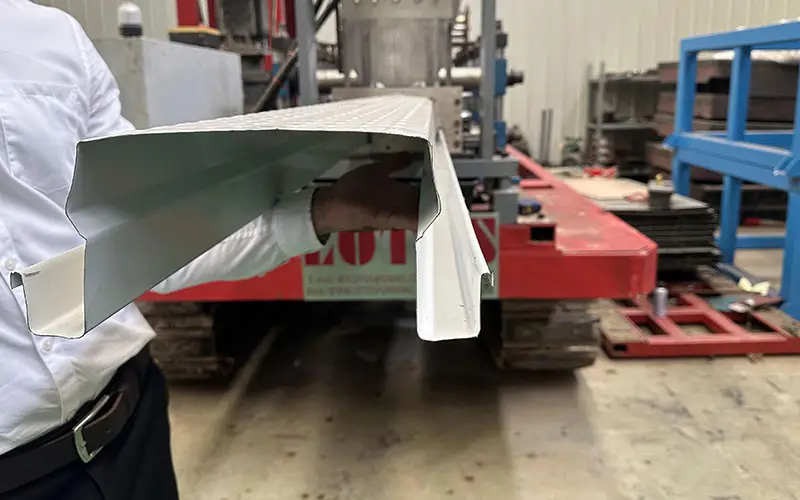

Growing Gutter Roll forming Machine

Collecting rainwater from the greenhouse structure is not only an economical way to water plants but also very beneficial.
There are many reasons why rainwater is better than tap water for plants. there are some catchment systems to catch rainwater. so you can collect the water from the greenhouse when it is raining. The Greenhouse Gutter Machine makes the Gutter and hanging system be produced at the desired length in the greenhouse on-site. The seamless technology ensures connections and leaks are minimized.This machine is designed to manufacture hanging gutters for collecting rainwater with recirculation on the farm. This makes it easier to install and transport to the greenhouse and reduces storage and logistics problems.

Mobil greenhouse Gutter Machine

A mobile greenhouse gutter machine is a piece of equipment used to fabricate seamless gutters, specifically for greenhouses, which helps manage water runoff efficiently. These machines are usually mounted on trailers or trucks for easy transportation and are capable of producing custom lengths of gutters on-site. They offer flexibility in managing water collection systems for greenhouses by forming gutters from metal coils, typically aluminum or steel, as per the desired size and design.

Mobile Greenhouse Gutter Roll Forming Machine

  • Machine design capacity
  1. Raw material thickness: 0.6-0.8mm
  2. Input material width: 280mm(will be confirmed after the final drawing)
  3. Suitable raw material: Mg-Al, PPGI
  4. Production line working speed: 8-12m/min
  5. Working area: about L75,000*W850mm*H1,000mm
  6. Machine weight: about 6,000kgs
  • Each part technical parameter
1. Automatic hydraulic decoiler
1.1Loading capacity3T
1.2Steel coil I.D.φ480-φ520mm
1.3Steel coil O.Dmax φ1800mm
1.4Cantilever width400mm
2. Roll Forming Machine
Roller groups12 stations
Roller material

45# Steel with heat treatment, HRC58-62°

With 0.05mm Chrome coating


Roller shaft dia.Φ65mm
Shaft material45# Steel
Motor5.5KW
Transmission wayChain
Machine frame body350H beam welded structure
Roller supporterWall structure
Roller bearingHRB
