Heavy Gauge Slitting Machine

Slide 1

Slide 2

Slide 3

Slide 4

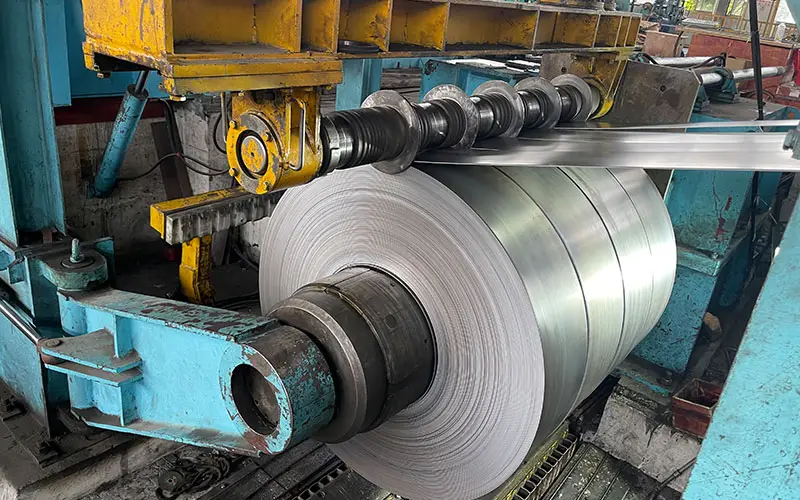

Steel Slitting Line

Heavy gauge slitting machines are designed for processing thicker and heavier metal coils, typically ranging from 4mm to 25mm in thickness, depending on the material. Metal Slitting Machines are robust and engineered to handle heavy-gauge coils with high strength and weight while maintaining precision and efficiency.

Heavy Duty Slitting Machines

High-Strength Slitter Heads
- Made with durable materials like tungsten carbide or hardened steel.
- Capable of cutting through thick and hard materials without compromising on precision.
Hydraulic Support Systems
- Hydraulic mechanisms assist in loading, positioning, and guiding heavy coils.
- Coil car or uncoiler systems designed to handle coils weighing up to 35+ tons.
Precision Slitting
- Advanced blade positioning for precise, burr-free cuts.
- Adjustable slitter spacing to accommodate different strip widths.
Heavy-Duty Recoilers
- Designed for recoiling heavy strips without deformation.
- High torque and capacity to manage processed coils.
Scrap Management
- Scrap choppers or ballers efficiently handle edge trims and scrap, reducing downtime.
Tension Control
- Critical for maintaining strip flatness and uniformity in thick materials.
- Equipped with tensioning devices and braking systems to avoid warping.
Computer-Controlled Operation
- Automation features include coil feed alignment, diagnostic tools, and quality control.
- Real-time monitoring to ensure process stability.

[embedyt] https://www.youtube.com/watch?v=Qr1tnNqWrpc[/embedyt]

[embedyt] https://www.youtube.com/watch?v=UU-xD2s14Qc[/embedyt]

Technical Specifications for Heavy-Duty Slitting Line

The following table outlines the typical technical specifications for a Heavy-Duty Slitting Line. These specifications can be tailored based on specific industrial requirements:

Parameter	Specification
Material Thickness	4mm – 25mm (customizable for thicker materials)
Material Types	Carbon Steel, Stainless Steel, Aluminum, HSLA
Coil Width	500mm – 2000mm
Coil Weight	Up to 40 tons (higher capacities available)
Slitting Speed	0 – 120 meters per minute
Number of Slitting Strips	Up to 30+ (based on material and width)
Blade Material	High-strength alloy steel or tungsten carbide
Recoil Outer Diameter	Up to 1600mm
Tensioning System	Hydraulic or Pneumatic
Line Configuration	Fully automated with manual override options
Control System	PLC-based with HMI touchscreen interface
Power Supply	380V/50Hz (or as per regional standards)
Hydraulic Pressure	15 – 25 MPa
Uncoiler Capacity	Up to 40 tons
Recoiler Capacity	Matches uncoiler specifications
Slitting Blade Adjustment	Automatic or manual with quick-change features
Scrap Handling	Scrap choppers or edge ballers included
Flatness Control	Integrated leveling devices for tension control
Lubrication System	Automatic centralized lubrication
Safety Features	Emergency stop, overload protection, guarding
Floor Space Requirement	Approx. 30m (L) x 8m (W) (varies by configuration)
