Door Guide Rail Roll Forming Machine
Our Products
Showing the single result
Door Guide Rail Making Machine
manufacturing various types of ▷ Door Guide Rail Roll Forming Machine | Roller Shutter Door Guide Rail. High Quality is for producing door guide rails, it can be matched with roller shutter door. in fact,LOTOSFORMING export door rail roll forming machine. We recommend the gearbox driving system and flying shear system to keep our machine work with high speed.

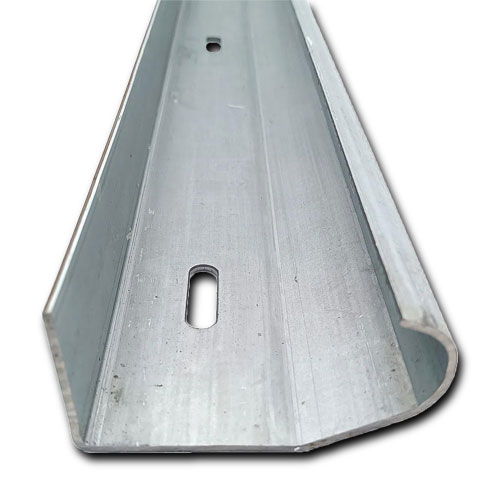

Door Guide Rail Roller Shutter Machine (70 mm )

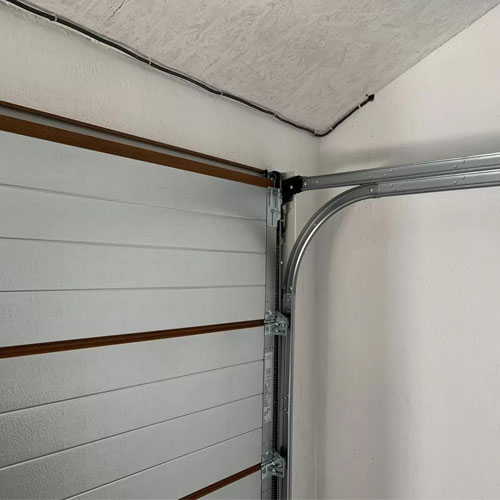

Guide Rail as the necessary component of the roller shutter door solution, not only to guide the door, it must enable wind resistance and security protection.So that, LOTOSFORMING has a great experiment to produce roller shutter door guide rail. A wide variety of Guide Rails Shutter Door Roll Forming Machine options is available to you. U Rail Roll Forming Machine can produce many types of roller shutter guide rails.

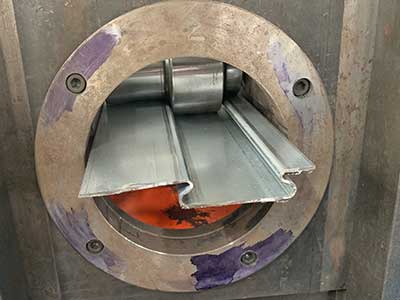

Elevator Guide rail Machine
Elevator guide rails are components of elevator systems that describe the path along which the elevator rides. Their joints and attachments will be sufficient to withstand the loads and forces imposed on them in order to ensure the safe operation of elevators. Our Elevator Guide Rail machine is suitable for elevator guide rails after cold drawn; we can process the guide rails.
Guide rail machine
Material: Galvanized Coil
Material Thickness: 3.0mm
Main roll forming machine Power:18.5KW
Forming Speed: 6-8m/min
Dimension: 7×0.7×0.8 m (L*W*H)
Weight: 5T
Main Parts
- Hydraulic Decoiler
- Roll Forming System
- Cutting&Punch Unit
- Control System
- Bending Machine
Working Flowing Guide rail roll forming machine
Hydraulic Decoiler — >Feeding Guide — > Roll Forming Machine (gearbox transmission) — >Online Punch — >Hydraulic Stop Cutting and Punch — > Out put table
FAQ:
1. What is a Door Guide Rail Roll Forming Machine?
A Door Guide Rail Roll Forming Machine is an automatic production line designed to manufacture metal guide rails used in sliding doors, roller shutter doors, and industrial doors. It shapes galvanized steel or aluminum coils into precise rail profiles with high strength and accuracy.
2. What materials are suitable for door guide rail production?
The machine can process galvanized steel, cold-rolled steel, stainless steel, and aluminum coils, typically ranging from 0.6 mm to 2.5 mm in thickness depending on door type and application.
3. What industries use door guide rail roll forming machines?
These machines are widely used in the roller shutter door industry, sectional garage door manufacturing, industrial doors, and commercial building systems.
4. What is the production speed of a LOTOSFORMING door guide rail line?
The production speed usually ranges from 10 to 30 meters per minute, adjustable according to the profile design and material type.
