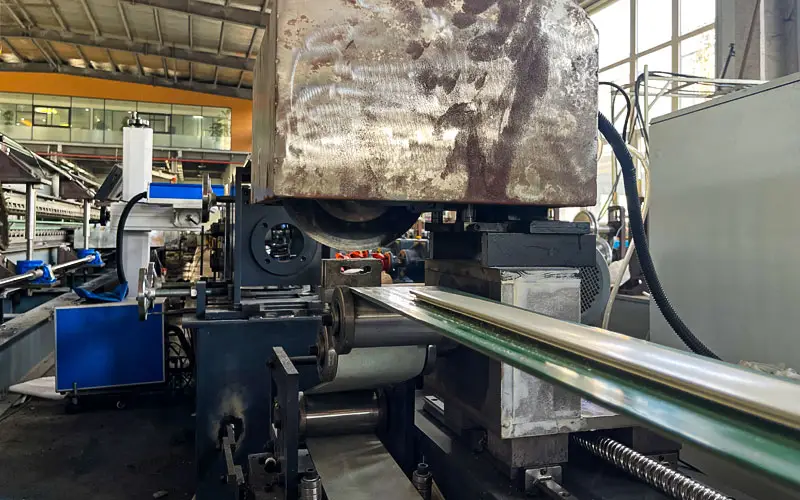

PU Rolling Shutter Machine

Roll Forming Process We manufacture roll forming machine for Pu Foam door shutter in order to provide the clients optimum satisfaction. Welcome to buy Wide Range of ▷ PU Door Shutter Roll Forming Machine | Roller Shutter ◁ from LOTOSFORMING. Customized Design, Patented Technology, 24 Hours’ Service, Fast Delivery, Factory Price! Fully Automatic. High-Quality Assurance. The constant attention to the rolling forming market, together with the desire to always improve the roll forming machine production, resulting in the improvement of services and the expansion of its research and development department.

How to set up rolling shutter machine

PU Foam Roller Shutter Machine

PU roller shutter door roll forming machine

LOTOSFORMING Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished companies in Security rolling shutters roll forming machine and outer PU Foam Roller Shutter Door Roll Forming Machine industrial branch. we can produce a wide range of industrial doors includes sectional overhead doors and roller shutters and fire roller shutters and security doors also PU Foam Injection Shutter and etc. Steel roller shutters are very versatile and come with various options. PU foam shutter door section which is ideal for showrooms.

China Steel Door PU Shutter Roll Forming Machine

High Speed Polyurethane Foam Door Shutter Machine

A double layer roller shutter overhead door is a type of door or window shutter consisting of many horizontal slats hinged together. The door is raised to open it and lowered to close it. On large doors, the action may be motorized. The Pu door blinds Production Line consists of decoiler, feeding guide, main roll forming, foaming machine, straighten device, punching device, fly saw cutting, control box, and out table

Rolling Shutter Slats Roll Forming Machine

insulated panel machine

Insulated metal panels are wall and roof panels with steel skins and an insulating foam core. Insulated metal panels are weather-tight and provide a strong thermal.
Cold Storage Panel Roll Forming Machine or cold room panel machine is recommended to prevent water, rain, or snow leakage, for industrial.

PU Roller Shutters Machines

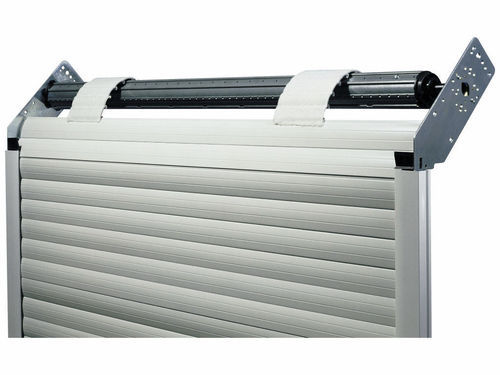

The polyurethane foam roller shutter window is a new energy-saving, long-lifetime, and environmental protection of the product.
main material of the slat adopts the high-quality is widely used for the building, villa, office building. So, We have experience in designing, producing, installation, and research of the different roller shutters machines.

Therefore, an Insulated rolling shutter door and window covering widely use all over the world. Although PU rolling shutters associate with security and sun control, they can also decrease dust, noise, and sun damage to furniture, draperies, and carpets. PU Rolling Shutter Slats Roll Forming Machine for producing PU foam products.

PU Safe Secure Roller Shutter Door Machine

Material: Galvanized Coil, Aluminum

Thickness: 0.3-0.5mm

Main roll forming machine Power: 7.5 KW

Forming Speed: 10-12m/min

Feeding width: 229mm

Production line N/W: about 8T

Production line length: about 38m

Main Parts of PU-foamed Rolling Shutter Making Machine

  1. Manual Un coiler
  2. Feeding Guide
  3. Roll Forming System
  4. Foaming machine
  5. Pneumatic flying saw
  6. Control system
  7. Output table

Working Flowing PU Rolling Shutter Slat Production Line Making Machine

Manual Un coiler      ⇒     Feeding          ⇒   Roll Forming      ⇒     Cutting     ⇒ Output table

Decoiler TypeManual
Loading capacity3Ton

Impassive to expanding

Roll Forming system with feed panel unit
Axis Diameter50 mm
Forming Roller station36+1 groups
Main Axis materialFirst grade 45# steel

heated and quenched

Roller materialFirst grade 45# steel,

Hard Chrome Coated,

heated and quenched

Pillar size42*45mm
Forming Speed10-12 m/min
Drive TypeModel 110 Gear box
Machine Frame standWelded structural steel,

thickness 10mm

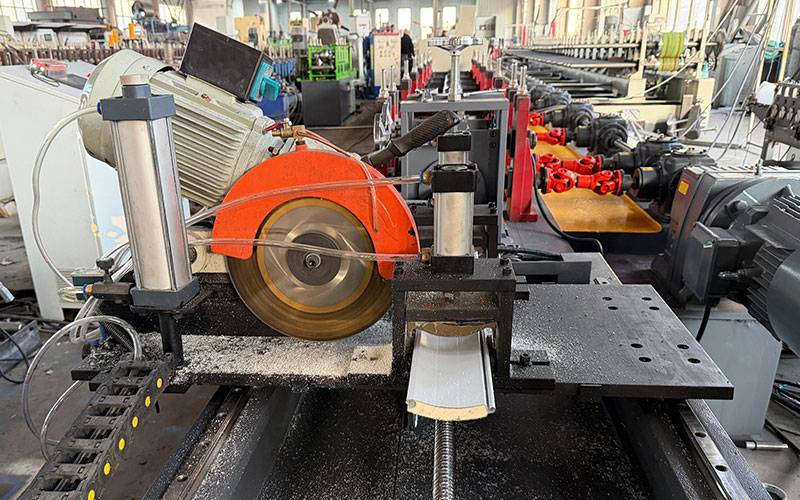

Cutting Device
Servo tracking cutting
Cutting system power2.2KW
 length tolerance±0.5mm
PU Foaming Untit
PU Raw material tanksMixer type

2nd generation

No-block nozzle

Electrical System
PLC systemDelta
Length Controller
OperationDelta Touch Screen
Run-out Table
Table quantity1 pcs*6m length
StructureAngle bar welded
