High Speed Tube Mill Machine
this tube mill processes steel strip thicknesses ranging from 0.8mm to 3.0mm and achieves production speeds of up to 120 m/min.

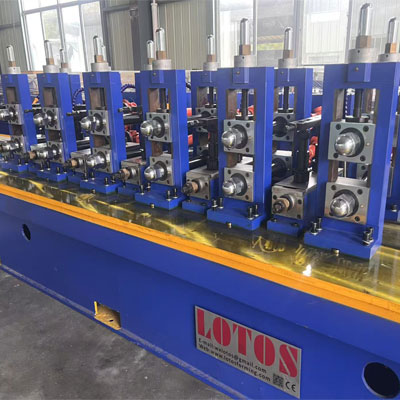

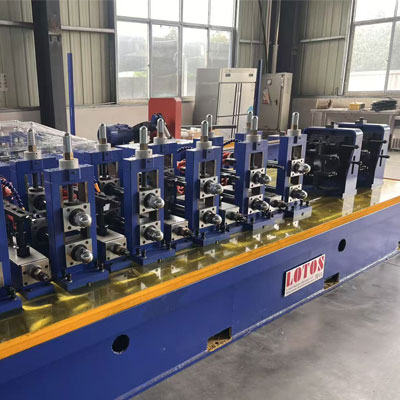

Equipped with advanced forming and high frequency welding technology, the LT(60) Tube Mill delivers excellent tube roundness, accurate dimensions, and strong weld quality. The line is suitable for manufacturing tubes used in construction, furniture, automotive components, mechanical structures, and various industrial applications.
Built with durable components and intelligent control systems, the LT(60) Tube Mill ensures stable operation, reduced downtime, and high production efficiency. LOTOSFORMING provides complete turnkey solutions, including machine installation, operator training, and technical support to help customers maximize productivity and product quality.
Working flow:
Raw material (steel coil) → uncoiling → shearing and butt-welding → material accumulating → non-power leveling → mill-forming → high-frequency welding → removing burrs outside of weld seam → cooling → sizing → Turkish head → cold saw cutting → run-out table
Key Features
- Production speed up to 120 m/min
- Material thickness range: 0.8mm–3.0mm
- High-frequency welding technology
- Precise tube forming and sizing
- Stable and continuous production
- Low maintenance and high efficiency
- Suitable for various steel tube applications
- Customizable configurations available
Machine parts :
3. Horizontal accumulator | ||
3.1 | Principle | Pull in from the outside and discharge from the center |
3.2 | Accumulator diameter | Ф3.5M |
3.3 | Strip width | 62mm~205mm |
3.4 | Strip thickness | 0.8mm~3.0mm |
3.5 | Feeding motor power | AC 5.5KW |
3.6 | Driven motor power | AC 7.5KW |
1. Double side hydraulic un-coiler | |||||||||||||||||
1.1 | Structure type | Hydraulic expanding and 180° rotating and pneumatic braking | |||||||||||||||
1.2 | I.D. of steel coil | Φ450mm~Φ550mm | |||||||||||||||
1.3 | O.D. of steel coil | Φ800mm~Φ1600mm
| |||||||||||||||
1.4 | Width of strips | 62mm~205mm | |||||||||||||||
1.5 | Maxi. Load weight | ≤3000kgs | |||||||||||||||
7. Zinc spraying | ||
7.1 | Function | Repairing the welding seam zinc surface |

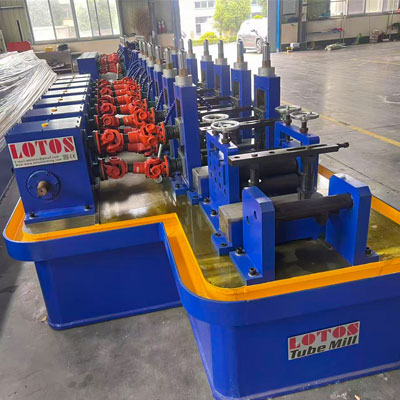

4. Mill-forming machine | ||||||||||||||||||||||||||||||||||||||
4.1 | Feeding device | Leveling device | l 7-roller leveling, non-power l Shaft material: 40Cr l Adjust type: hand wheel rotation | |||||||||||||||||||||||||||||||||||
|
| Guide vertical rollers | 2 units, manual adjustment | |||||||||||||||||||||||||||||||||||
4.2 | Requirements | Round tube range: Φ20-Φ65mm, thickness: 0.8-3.0mm； Square tube range: 20×20-50×50mm, thickness: 0.8-2.5mm； Rectangular tube range: 20×30-40×60mm, thickness: 0.8-2.5mm. | ||||||||||||||||||||||||||||||||||||
4.3
| Roller groups | Horizontal stands | Vertical stands | |||||||||||||||||||||||||||||||||||
|
| 7 stations | 8 stations | |||||||||||||||||||||||||||||||||||
4.4 | Shaft dia. | Φ70mm | Φ45mm | |||||||||||||||||||||||||||||||||||
4.5 | Shaft material | 42CrMO | 42CrMO(heat treatment) | |||||||||||||||||||||||||||||||||||
4.6 | Stands material | High-precision forged steel | CNC machining and wire cut sizing | |||||||||||||||||||||||||||||||||||
4.7 | Adjust type | Nut adjust the up roller | Copper nut with screw rod | |||||||||||||||||||||||||||||||||||
4.8 | Power transmission | From universal transmission joint to horizontal roll stands | ||||||||||||||||||||||||||||||||||||
4.9 | Driven gearbox | Quantity | 7 gear boxes | |||||||||||||||||||||||||||||||||||
|
| Material of gearbox | QT50 | |||||||||||||||||||||||||||||||||||
|
| Type | Spiral bevel gear | |||||||||||||||||||||||||||||||||||
|
| Material of gearbox | 20CrMnTi(heat treatment) | |||||||||||||||||||||||||||||||||||
|
| Material of gear shaft | 42Cr(heat treatment)
| |||||||||||||||||||||||||||||||||||
8. Cooling tank | ||
8.1 | Structure type | Sink and shower installed in machine bed |
9. Sizing machine | |||
9.1 | Requirements | Round tube range: Φ20-Φ65mm, thickness: 0.8-3.0mm； Square tube range: 20×20-50×50mm, thickness: 0.8-2.5mm； Rectangular tube range: 20×30-40×60mm, thickness: 0.8-2.5mm. | |
9.2 | Roller groups | Horizontal stands | Vertical stands |
6 stations | 6 stations | ||
9.3 | Shaft dia. | Φ70mm | Φ45mm |
9.4 | Shaft material | 42CrMO | 42CrMO(heat treatment) |
9.5 | Stands material | High-precision forged steel | CNC machining and wire cut sizing |
9.6 | Adjust type | Nut adjust the up roller | Copper nut with screw rod |
9.7 | Power transmission | From universal transmission joint to horizontal roll stands | |
9.8 | Driven gearbox | Quantity | 6 gear boxes |
Material of gearbox | QT50 | ||
Type | Spiral bevel gear | ||
Material of gearbox | 20CrMnTi(heat treatment) | ||
10. Turkish head | ||
10.1 | Straightening stands type | Turkish-heads type and 360° rotary |
10.2 | Straightening stands quantity | 1 unit |
10.3 | Shaft material | 40Cr |
10.4 | Straightening shaft diameter | Φ45mm |
10.5 | Function | Straightening pipe online |
