Scaffolding Machine

Scaffolding is an important part of the construction industry. No structure can be completed without employing reliable and stout scaffolding.
Metal scaffolding is used during construction, maintenance, and repair. Metal scaffolding allows workers to access high and remote locations of any building.

LOTOSFORMING scaffolding roll forming machine is specifically designed for rolling Scaffolding Board Steel. We are indulged in the manufacturing and exporting of Automatic Scaffold Panel Machine.
Our roll forming machines are manufactured to ensure the highest quality. Scaffolding Board Steel Roll Forming Machine is used for producing Scaffold walk board. Our scaffolding roll forming machine features strength and automation.

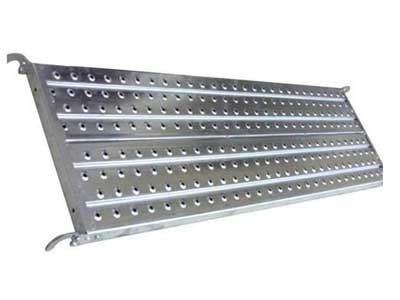

Scaffold Metal Plank Roll Making Machine

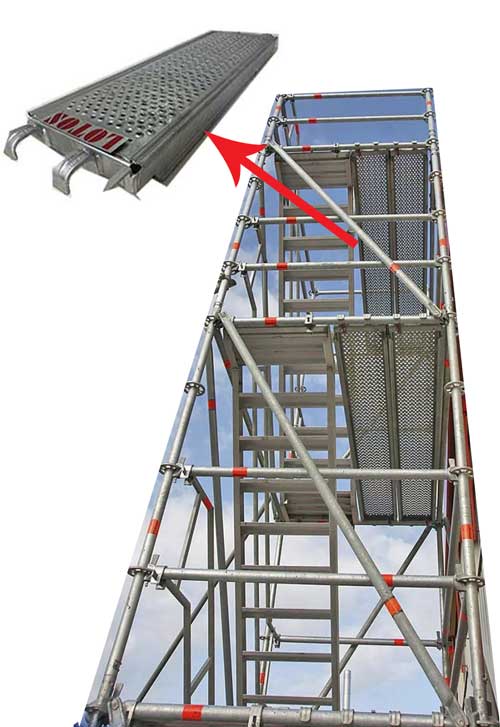

Platforms on scaffolding structures are generally formed using a type of board, which are placed along the length of the scaffold lift. They are supported at centers that are determined by the Scaffolding Board type or Scaffold Panel. Scaffold boards made from steel are very durable.

Scaffolding systems for the Industrial, Commercial & Residential Markets are designed and manufactured to meet all scaffolding industry standards. Using the scaffold walk board can help ensure worker’s safety also secure empty places to facilitate carrying materials in the place where workers can frequently.

Scaffolding Line

Scaffolding Planks are ideal for ladder jack, swing stage, or catwalk applications. Slip-resistant decking and the twist-proof construction provide safety and stability.

advantage of Scaffolding Walk Boards :

High bearing capacity and low weight
anti-corrosion.
Anti-deposited sand
fireproof
Slip-resistant surface.
Foolproof
weather resistance
Safe and neat construction
Environmental protection.
Easy to assemble
cost-saving.

Scaffolding roll forming machine

you call them scaffold walk boards, scaffold stage boards, or scaffold planks you can count on DSS for safe, durable, and long-lasting scaffold products. A wide variety of walk board scaffolding sheet roll forming machine options is available to you, such as steel, colored steel, and colored glaze steel.

Keeping in mind the modern trends and latest technology used, we are engrossed in manufacturing, exporting, and supplying a wide gamut of quality assured Steel Scaffolding Walk Board roll forming machines.

Our provided Scaffolding Plank roll forming machine can be used for industrial purposes. Our offered Scaffold Walk Board Roll Forming Machine is made available to the clients at market-leading prices. Scaffolding systems for the Industrial, Commercial & Residential Markets are designed and manufactured to meet all scaffolding industry standards.

Scaffolding Rollforming Line

Machine components:

This production line will be combined with hydraulic decoiler, leveling system，servo feeding, 250T hydraulic punch machine, hydraulic punch station, roll forming machine part, hydraulic stop cutting and so on.

Each part technical parameter:

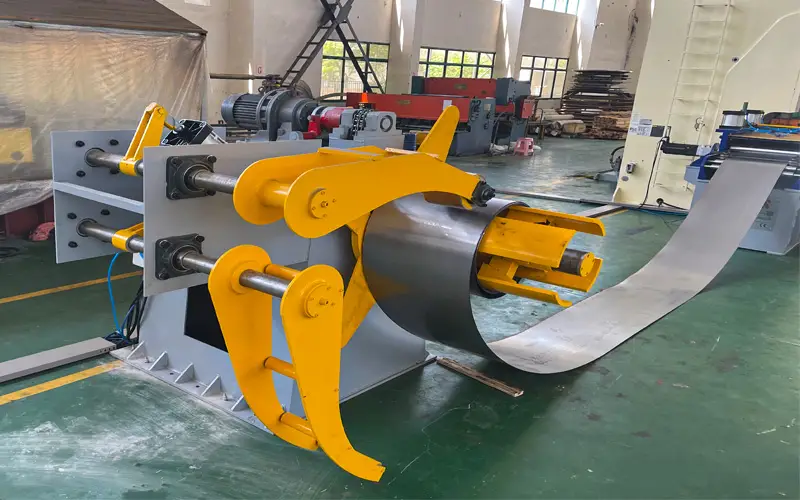

1. Hydraulic decoiler
1.1	Loading capacity	5ton
1.2	Steel coil I.D.	φ480-φ508mm
1.3	Steel coil O.D	max φ1400mm
1.4	Cantilever width	800mm

Scaffolding Production Line

2. Leveling +Servo feeding +Press Machine
Leveling roller	5-roller
Servo motor	4KW
Press machine	YANGLI JH21-250T
Die	Perforation die, one unit
Die material	CR12MOV

3. hydraulic punch machine
Punch die	Core-pulling die
Die material	GCr12, heat treatment, Hardness 58-62°

4. Roll Forming Machine
Roller groups	32 stations
Roller material	GCR15 with heat treatment, HRC58-62°
Roller shaft dia.	Φ85mm
Shaft material	40Cr with quenching and tempering
Motor	30KW, Siemens BEIDE
Transmission way	Z180 Gearbox
Machine frame body	welded plate, Stress-Relieving
Roller supporter	Casting pillar
Forming Speed	10-15m/min
Width changeable	Inovance 1.5KW servo motor, 4 sets

5. Cutting to length
Cutting Way	Hydraulic flying cutting die
Hydraulic motor	7.5kw
Cutting die material	CR12MOV

6. Electricity control cabinet

Frequency inverter

DELTA

PLC

DELTA

Screen touch screen

DELTA

Encoder

Omron

Low voltage

Schneider

Power supply

5. Cutting to length
Cutting Way	Hydraulic flying cutting die
Hydraulic motor	7.5kw
Cutting die material	CR12MOV

6. Electricity control cabinet
Frequency inverter	DELTA
PLC	DELTA
Screen touch screen	DELTA
Encoder	Omron
Low voltage	Schneider
Power supply	415V/60HZ/3P
