How to adjust the rollers of the roll forming machine?
Adjusting the gap between rollers, Roll Forming Machines are flexible and continuous processes. It has been proven several times that the roll forming machine does roll forming tasks which even seemingly impossible. though it may take a longer time and much more money. it also showed that plans to roll form simple shapes can create disastrous results. If the designer doesn’t follow the basic rules of roll forming.
Rollers are one of the main components of the roll forming machine. In practical terms, rollers manufacturing must be hardly precise. The deviations of roundness or eccentricities of a very low order will have great implications in part quality. And the surface quality must be extremely high due to contact and lubrication issues. As usual, rollers are split into several sections for ease of manufacturing. In fact, there are instances where this is the only possibility and also allows for easier installation.
in this page you can learn all thing about:
Roll Forming Machine Rollers
how to lose shaft and move space sleeve in roll forming machine
How to adjust the rollers of the roll forming machine
How to Change Spacer Multi-Profile of the roll forming machine
Spacer change for multi-profile roll forming machine
Change size by change spacer for roll forming machine
How to Change Roller Spacers of Roll Forming Machine for Different Profile
Between the rollers are spacers, which will reduce the cost of the mill. And easy to adjust to produce a different desired profile with split spacers. After confirming the total length of the rollers. It requires less expensive spacers to fill the space between the rollers. The spacers usually produce by seamless pipes.
The max and min length of the spacers limit by the space of the rollers. and length tolerance is very important. the inner diameter of the spacers should be a bit larger than the outer diameter of the shafts. most frequently used spacers make out of one piece, and some times we also use Split Spacers. The split spacers can reduce the roller change over time of various width profiles. Instead of removing the nuts from the end of the shaft, pulling out the roll forming stands, rollers, and also the spacers.
Adjust the gap Between the up roller and down roller:
Many roll-to-roll forming processes usually use a series of hard pressure rollers, to deliver smooth, high-quality products. Ensuring a consistent material thickness depends on the ability to monitor, and hold a precise gap between rollers.
Establishing a roller gap and checking for parallelism across roller width can be a slow and cumbersome procedure. Manual measurement requires multiple sized feeler gauges.
If the adjustment knobs turn when you receive the mill, then the screws may have loosened during shipment, and you need to check the gap setting. when you have brewed using some grain that you crushed with the factory gap setting, you’re ready to adjust the gap and turn up the efficiency of your factory.
To adjust the gap, loosen the screws so the knobs can turn. Use a feeler gauge to measure and set the gap. Slide the feeler gauge shims into the gap on one end of the rollers. Tighten the knobs so the feeler gauge is tight in the gap. Repeat on the other end of the roller to be sure they are parallel. Tighten the screws on the adjustment knobs.
LOTOSFORMING guides and explains many of the common issues encountered in the roll forming process and roll forming operation manual, all factors that contribute to possible problems such as material, design, and manufacture.
roll forming operation manual is a process that developed by gradually bending the metal through a series of roll stands, or passes. Each stand must produce the appropriate amount of deformation for which it was designed. when roll-forming problems occur. it is important to examine each stage of the process and not merely the stand at which the problem initially appears. The goal of a roll forming operation achieves when there is uniform metal deformation throughout the line. Roll forming operation manual design to be reasonable during the operation. If run “popping” throughout the operation, the operation needs to be investigated.
Two basic types of roll forming systems utilize a pre-cut line and a post-cut line. A pre-cut line snips the incoming material to a specific length prior to roll forming operation manual. During post cut line operation, the roll-formed panel runs continuously and shear to the required length after roll forming.
Roll forming operation :
One of the main parameters that define the success of a roll forming operation is the character of the material. for design the optimal process, the designer should provide material information to use prior to the tooling designing such as material mechanical property ranges, gauge tolerances and shape tolerances, different metallic coatings.
Mill alignment is critical. forming rolls and their components must align with each other both horizontally and vertically. The rolls must align both side-to-side and pass-to-pass. Forming material with the gauge either lighter or heavier than that for which the tooling is designed can result in problems. Using material thinner than the designed gauge can lead to finish radii greater than the intended design. This is usually offset by over-tightening the rolls, which causes a decline in tool life.
Processing heavier gauge material than intended can also lead to larger radii than designed. When running thicker material, the tooling will make contact on the side of the tool radii leaving no center contact with the tooling. Since the material is not in proper contact with the tooling, gap differences from side to side become more critical. Small side-to-side roll gap differences can result in a twist, bow or sweep problems.

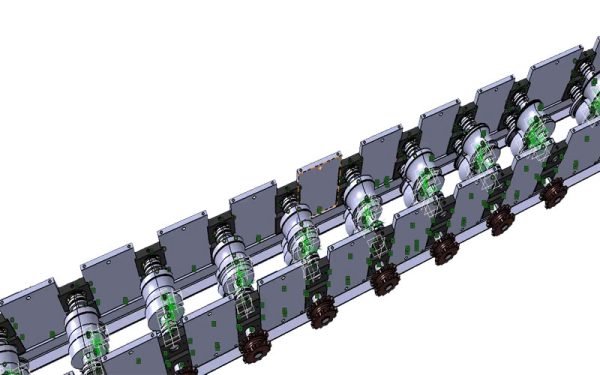

Roll forming components
setup by the roll tooling manufacturer, feeler, or wire gauges is most often used to set the gaps on roll-forming stands. This should ideally be done each time the metal being utilized changes significantly in gauge. Operators must be sure to periodically check for tooling wear or machine wear.
Each stand consists of top and bottom rolls designed to provide the necessary part dimensions. position of the top roll can be adjusted via screws to change the gap between rolls, thereby changing the forming pressure applied to the metal at each stand. The final roll gap adjustment on each stand should always be down to compensate for the gear and bearing tolerances inherent to each stand.
Cutoff dies or shears are available in many types and variations. The most common types utilized for roll forming machines are the “slugless crop die” and the “flying shear”, or “cutoff die”.cutoff operation accurately cuts the part to the desired length in a manner that is essential to the continuous operation of the line. Slugless crop dies generally have a short stroke length, possess contoured blades, and rapidly cut-off the finished part. Since the cut-off action is extremely fast, and accurate cut can normally be performed without interruption to the continuous operation of the line. Proper set-up in this type of operation is critical.
Roll forming machine design
Line speeds, die speeds, and die clearances must closely establish and monitor to prevent blade drag. This condition can result in panel buckling. Removal of the buckled panel from the line is time-consuming and may result in damage to the cutoff die, or in extreme cases, to the roll tooling. Even if the part does not buckle to the point that it jams the line, improperly timed cutting can cause problems upstream in the roll former.
Momentary interruptions in the later roll-forming stand, while the initial stands are still driving the material, can result in a wide variety of problems and/or imperfections. Minor buckling in the intermediate stands can result in oil canning type imperfections as well as other twist or dimensional issues in the finished panel. If the line is set-up with extremely loose tooling clearances. the effect of momentary line interruption from the cutoff operation may be seen all the way to the uncoiler. In this instance, the alignment of the entire line becomes integral to the cut-off operation. For example, if the uncoiler is out of alignment, the momentary line interruption could pull the material in a skewed manner from the uncoiler and potentially cause oil canning, twist or sweep problems.
Roll forming stands
A flying shear, or cut-off die, may require an increase in the line speed or panel height configuration. This allows the shear or die to attain the speed of the line prior to the cutoff operation. The timing of the shear is critical in this operation. Momentary interruptions in the latter roll-forming stands, as described above, will generally be larger in magnitude and more serious in nature as the speed of the cut-off operation increases. blade or die should always cut to an approved part. Improperly design/machine tools must avoid because they result in tight clearances, induce blade drag, tool drag, or lose clearances, which result in burrs on the finished panel.
roll forming machine price
Roll forming machine configuration :
With a working knowledge of the roll forming machine configuration and the roll former setup procedures, the root cause of many problems can determine at the plant level. Generally, the most important factor to keep in mind is that roll-forming issues must approach from a systematic point of view. That is, everything must consider from the incoming material properties, lubrication, roll former setup, uncoiler, and cut-off methods to the inspection details of the finished product. All or any of these factors can impact the acceptance of the finished part.
adjusting the roll forming machine :
What are the Tool Gap Settings?
Gaps should initially be set at the material gauge with final adjustments made to achieve the desired final dimensions.
Does It Hold Dimension?
Ensure that the material within the order width and property tolerances. Check the gaps in the overbend stands for proper gauging.
Where Does the Imperfection Appear?
Inspect and check the tooling and gap settings where the imperfection occurs and in the stands upstream. Adjust to appropriate settings.
Are There Tight or Loose Areas on the Finished Panel Radii?
These imperfections typically denote improper tooling adjustment or worn tooling or bearings. Ensure that the tooling has proper gap settings. Inspect the tooling for worn areas. Inspect the line during operation for bearings with excessive movement. Occasionally, a worn bearing will make noise during operation. If bearing wears isolate and is consistently in one stand, it would be prudent to inspect the tooling in the entire line for alignment, wear and proper gap settings.
Roll Forming Systems :
Does the Tooling Run Eccentrically or Wander with Respect to Other Stands?
This is an indication of bent shafts, worn bearings, worn or misaligned tooling. If the tooling visually wanders from side to side, either the bearings are worn or the shaft locknut has come loose, or a shim has worn or fallen out. When the tooling is running in an elliptical pattern (egg shape, or up and down) the shaft itself may be bent. This will require checking the shaft for run-out with a dial indicator for the amount of movement.
This normally indicates dry material, tight clearances, or improper tooling setup. Tooling stands where material slivers and/or debris accumulate should closely monitor, as this can lead to premature wear and finish panel imperfections. Material run with insufficient lubrication (dry areas) will run with increased friction in these areas during forming. This can cause the material to scrape during the roll-forming process, especially on the panel edges. In some cases, running dry material can raise the temperature of the tooling sufficiently to reduce the die clearances from heat expansion.
Tooling that gape to less than the material being formed, or tooling that is out of alignment from stand to stand can also cause this problem. Although it is sometimes not possible to prevent material debris accumulation on some stands. tooling should gape and check for alignment frequently.
Portable roll forming machine
Does the Material Track Properly into and from the Line?
Material that has differential lubrication edge-to-edge, the material with significantly different thickness edge-to-edge or tooling that is out of adjustment can cause tracking issues.
Does the Imperfection Appear at One Stand?
If this is the case, ensure the tooling gape properly at both the imperfection stand and also at the stands prior to where the imperfection occurs.
Does the Cut-Off Operation Run Transparent to the Line?
Drag or an out-of-time cut-off operation can induce a variety of imperfections or problems. In a post-forming cut-off process, the cut-off should not alter the continuous forming of the panel. Dull cut-off dies or knives can impart sufficient drag in the cut-off operation so that the formed panel actually begins to buckle in the cut-off operation. A similar condition is possible if a flying shear is out-of-time with the speed of the forming operation. Both of these conditions should address when they first appear, as permitting them to continue will eventually cause the panel to buckle in the line prior to the cut-off.
Roll forming machine for sale
Successful roll-forming relies on a combination of factors, including material properties, tooling set-up, and roll former operation. As problems arise, it may be difficult to ascertain which factor is negatively impacting the finished panel to the point of rejection. This is why it is imperative to view the roll-forming process from a systematic point of view. With this approach, it is possible to determine the root cause of the problem and take the appropriate corrective course of action.
