Product description
Applications

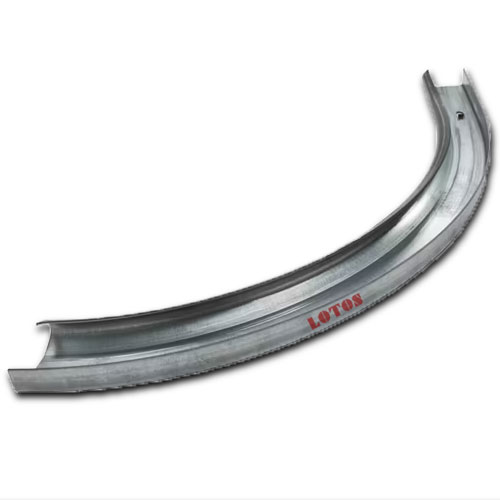

The finished tracks are mainly used in sectional garage doors, providing a guided path for garage door rollers during opening and closing. Different track configurations can be produced according to garage door design and installation requirements.
working flow :
Step1: Make straight guide rail
Hydraulic Decoiler —> Feeding Guide —>Roll Forming Machine (gearbox transmission)—>
Online Punch —>Hydraulic Stop Cutting and Punch —> Out put table
Step 2: Bending the guide rail
Workpiece —>Bending Machine

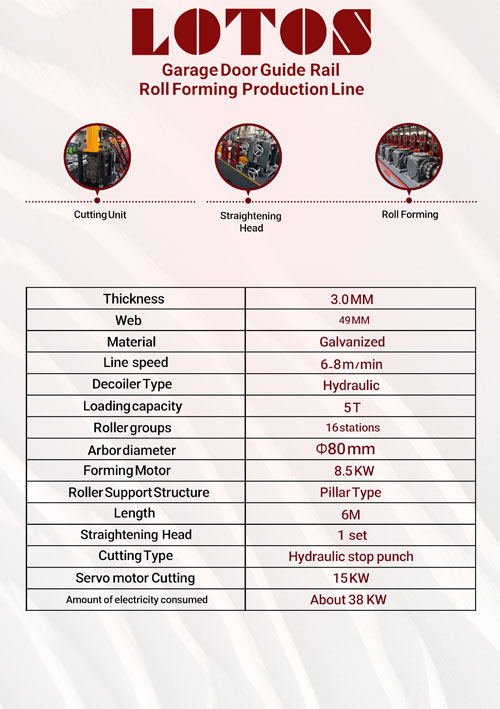

Each part technical parameter
| 1. 5T Hydraulic Decoiler | ||
| 1.1 | Loading capacity: 5T | |
| 1.2 | Steel coil I.D.: Φ480-Φ508mm | |
| 1.3 | Steel coil O.D: max Φ1400mm | |
| 1.4 | Cantilever width: 400mm | |
| 1.5 | Function: Motorized unwinding, hydraulic expansion | |
| 1.6 | Remark: l Coupled with press arm l Coupled with disc brake | |

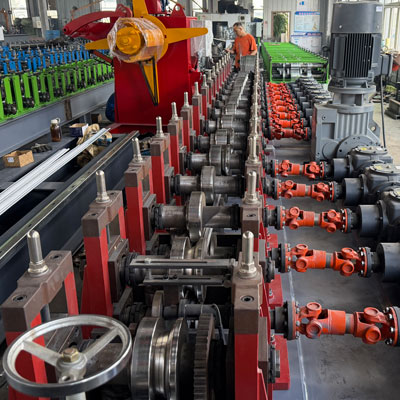

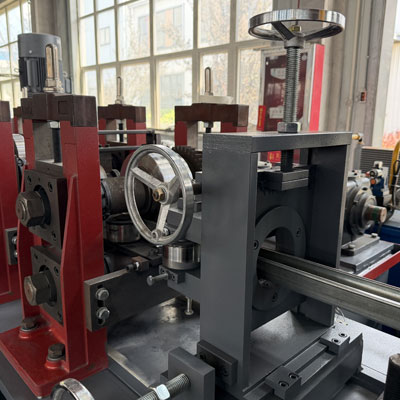

| 2. Roll Forming Machine | ||
| 2.1 | Roller groups: 16 stations | |
| 2.2 | Roller material: GCR15 with heat treatment, HRC 58-62° | |
| 2.3 | Roller shaft dia.: Φ80mm | |
| 2.4 | Shaft material: 40CR with quenching and tempering | |
| 2.5 | Motor: 18.5KW, Siemens BEIDE | |

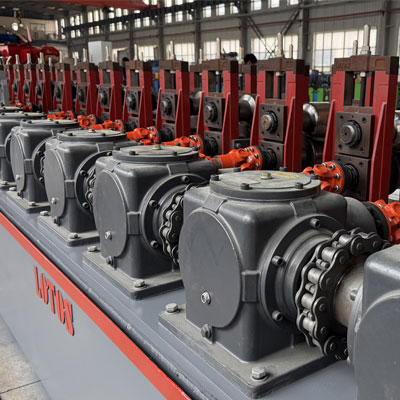

| 2.6 | Transmission way: Gearbox | |
| 2.7 | Machine frame body: Integrated welded plate housing frame | |
| 2.8 | Roller supporter: Casting pillar stands | |

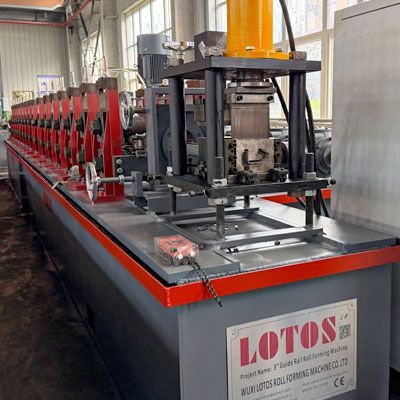

| 3. Cutting&Punch Unit | ||
| 3.1 | Hydraulic stop punch: 1 die | |
| 3.2 | Hydraulic stop cutting&punch: 1 die | |
| 3.3 | Die material: CR12MOV | |
| 4. Bending Machine | ||
| 4.1 | Function: Bending degree can be set via touch screen | |
FAQ:
Yes. An optional bending machine can be integrated to produce curved or customized track sections.
Yes. The production line can integrate hydraulic punching and cutting systems for accurate holes and finished lengths.
Yes. The forming rollers and tooling can be customized according to the required guide rail profile and dimensions.
It is a machine designed to continuously produce steel guide rails or tracks used in sectional garage door systems.
