Product description
Applications
This machine is ideal for manufacturers producing garage door guide rails used in:
- Residential and commercial garage door systems
- Sectional and roll-up door track assemblies
- Industrial door guide rail production
working flow :
Hydraulic Decoiler—> Feeding Guide —> Roll Forming Machine (gearbox transmission)—>Online Punch (4 dies) —> Hydraulic Stop Cutting —>Out put Table

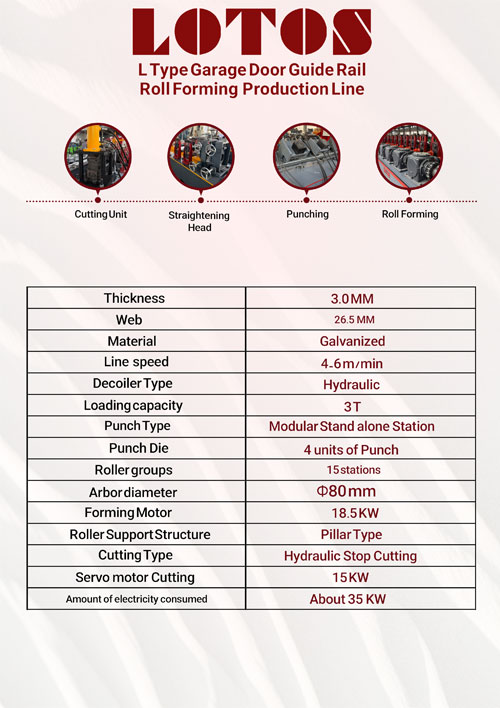

Ⅴ. Each part technical parameter
1.1 | Loading capacity：3T |
1.2 | Steel coil I.D.: Φ480-Φ508mm |
1.3 | Steel coil O.D: Max Φ1400mm |
1.4 | Cantilever width: 400mm |
1.5 | Function: Motorized unwinding, hydraulic expansion |
1.6 | Remark: l Coupled with press arm l Coupled with disc brake; |

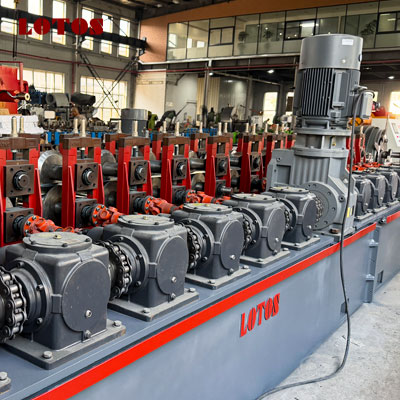

2. Roll Forming Machine | ||
2.1 | Roller groups: 15 stations |
|
2.2 | Roller material: GCR15 with heat treatment, HRC58-62° |
|
2.3 | Roller shaft dia.：Φ80mm |
|
2.4 | Shaft material：40CR with quenching and tempering |
|
2.5 | Motor：18.5KW，Siemens BEIDE |
|
2.6 | Transmission way：Gearbox |
|
2.7 | Machine frame body: Integrated welded plate housing frame |
|
2.8 | Roller supporter: Casting pillars stands |
|

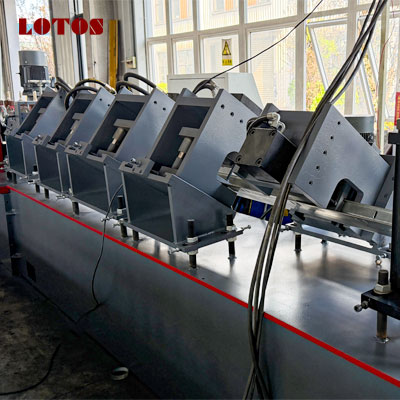

3. Punch Unit | ||
3.1 | Punch method： Hydraulic stop online punch |
|
3.2 | Punch die：4 units |
|
3.3 | Die material：CR12MOV |
|
4. Cutting Unit |
| |
4.1 | Cutting method: Hydraulic stop cutting | |
4.2 | Cutting die: 1 unit | |
FAQ:
The machine is designed to process coiled steel strip, including galvanized steel and other cold-formable metal materials, depending on the required rail thickness and mechanical properties.
Production speed varies depending on machine configuration and material specifications. Contact Lotos Forming for detailed speed specifications tailored to your production needs.

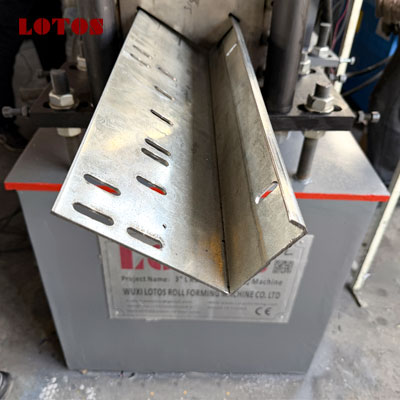

The 3 inch specification refers to the width of the L-type profile produced by the machine, which corresponds to standard garage door guide rail dimensions used in residential and commercial applications.

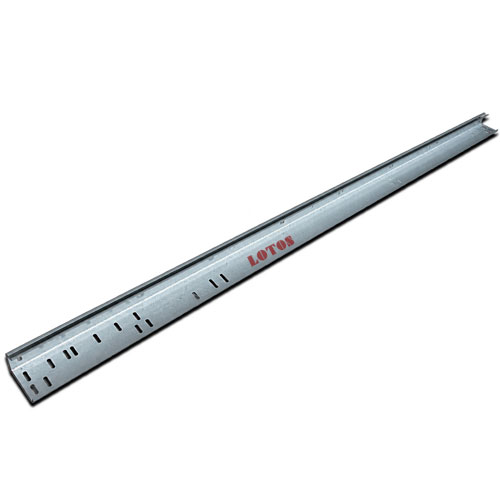

This machine is used to produce L-shaped steel guide rail profiles that form the track system for garage doors, guiding the door panel smoothly during opening and closing operations.
