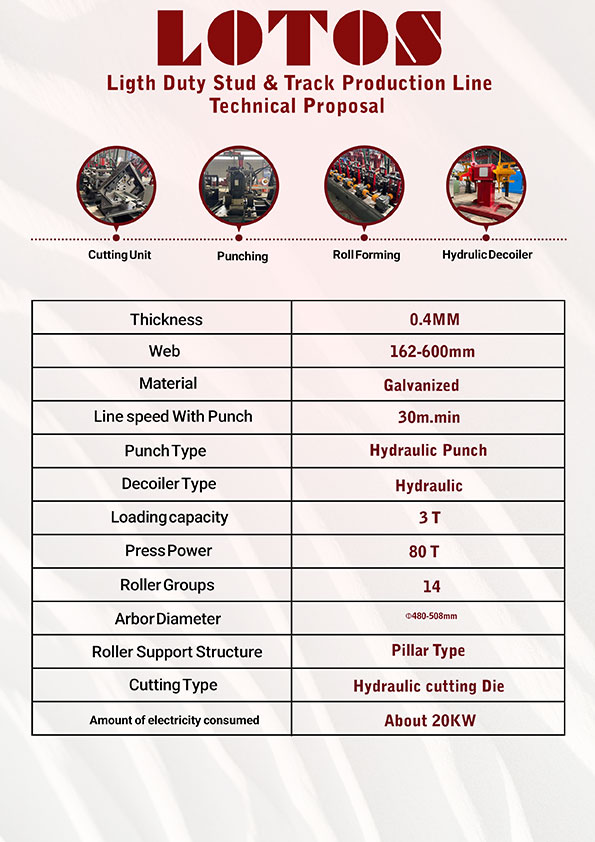

Steel Stud and Track Roll Forming Machine
The Stud & Track Roll Forming Machine by Lotosforming is a high performance industrial production line designed for manufacturing precise light gauge steel framing profiles used in modern construction systems. This machine is engineered to produce C-studs and U-tracks with exceptional accuracy, stability, and efficiency.
It is capable of processing steel coils with a thickness of up to 0.4 mm, making it suitable for lightweight structural applications such as drywall partition systems, interior wall framing, and ceiling support structures. With a production speed of up to 30 meters per minute, the machine ensures continuous, high output manufacturing while maintaining consistent profile quality.
The system integrates advanced roll forming technology with a robust mechanical structure, ensuring smooth operation and long service life. Its precision designed roller stations gradually shape the steel strip into exact geometries, while the PLC control system allows for easy operation, automatic length control, and high production accuracy.
Key Features:
- Material thickness capacity: up to 0.4 mm
- High production speed: up to 30 m/min
- Fully automatic PLC control system
- Precision roll forming design for accurate profiles
- Durable structure for continuous industrial operation
- Suitable for multiple stud and track sizes
Applications:
- Drywall partition systems
- Light steel framing construction
- Interior wall and ceiling structures
- Modular building systems
Working Flow:
3-ton double-head passive feeding → Forming main unit → Feed guide → 5-roll leveling → Forming roll → Turkish straightening head servo tracking punch set 1 set → Servo tracking cut (shape cutting) → 6-meter pneumatic discharge table
Ligth Gauge Keel Stud Track Machine :
1. Double-headed Unloading Rack
1.1 Unloading Rack Load Capacity: 3 tons
1.2 Inner Diameter of Steel Coil: φ480-φ508mm
1.3 Outer Diameter of Steel Coil: Maximum φ1800mm 1.4 Maximum Width of Steel Coil: 400mm
1.5 Function: Passive unloading 1.6 Other Requirements:
* Reel height from the ground: not less than 1.2 meters
* Foot-operated rotation 2. Forming Main Unit
2.1 Feed Guide: Adjustable according to strip width; T-shaped track width adjustment. 2.2 Manual Cutting Tool: 1 set
2.3 Number of Forming Passes: 14 passes
2.4 Roll Material: GCR15, quenched and tempered, heat treated, hardness HRC58-62° 2.5 Spindle Diameter: 65mm, subject to final design specifications
2.6 Spindle Material: 45# steel, heat treated and tempered, 4mm thick spacer
2.7 Main Motor: 7.5KW, Siemens Bede, hardened gear reducer from Shanghai Bojiang
2.8 Transmission Method: Z140 gearbox (5-tooth module)
2.9 Frame Structure:
100*100*4mm square tubing as the main frame structure, 6mm iron plate on the sides, laser-engraved LOTOS FORMING lettering;
– Frame height: 700mm
-Panel with 8mm iron plate throughout
– The two side archways and gearbox base are equipped with additional 30mm iron plates, precision machined to 25mm.
2.10 Roller Structure: 80# cast iron archway, pressure strip with “LOTOS” (custom-made by the archway manufacturer).
2.11 Width Adjustment: Servo motor adjustment, Xinje 2.2KW, main unit screen control. 2.12 Forming Speed: 30 meters/minute

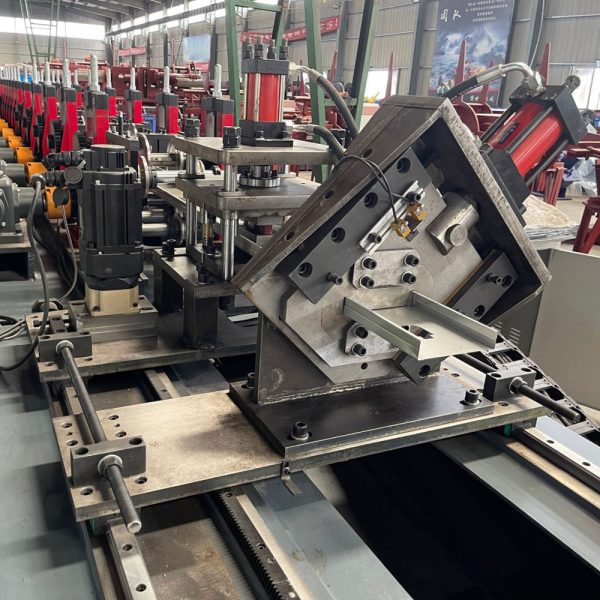

3. Tracking Punch + Tracking Cut
3.1 Punching Size: 0.75’’ × 1.75’’, Rectangular Hole
Tongue-shaped Hole
3.2 Punching Method: Servo tracking punch, Xinje 3KW
3.3 Cutting Method: Servo tracking cut, profile cut, Xinje 3KW
Burnt-free 4. Hydraulic Station 4.1 Motor: 7.5KW
4.2 Cooling Method: Air-cooled, with energy storage tank
4.3 Housing Volume and Wall Thickness:
Housing dimensions: 1000*1000*750mm
Housing wall thickness: 4mm 5. Operating System—Independent Electrical Control Cabinet
5.1 Inverter: Delta
5.2 PLC: Delta
5.3 Touch Screen: Delta, with “Lotos” startup interface
5.4 Low Voltage: Schneider Electric
5.5 Voltage: 220V/60HZ/3P
5.6 Unit of Measurement: Inch/feet
FAQ:
Yes. Many modern roll forming machines are designed to manufacture both C Stud and U Track profiles using interchangeable tooling or quick-change systems.
- High production efficiency
- Consistent product quality
- Reduced labor costs
- Minimal material waste
- Continuous production
- Easy operation
Partition studs are the vertical framing members, while partition tracks are the horizontal channels that hold the studs in place. Together, they form the structural framework for non-load-bearing interior walls.
Yes. The roll tooling and punching dies can be customized to manufacture special stud and track profiles based on customer drawings or international standards.
